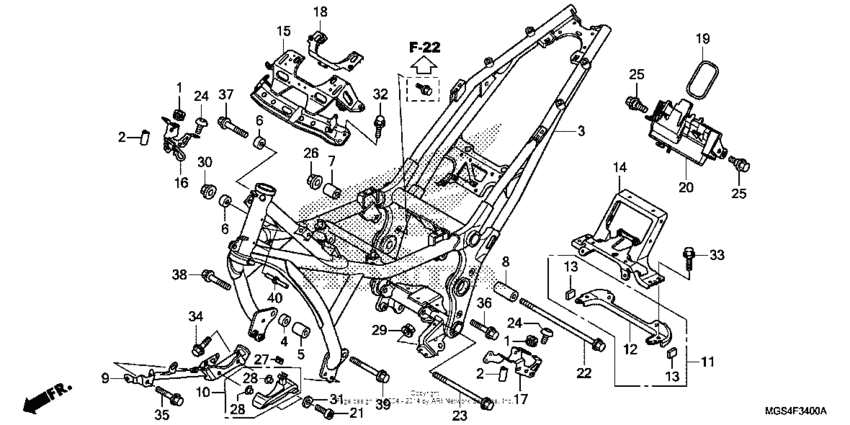

Frame Diagram Honda NC700
- Year
- 2012
- Model code
- NC700X AC
- Sales region
- USA
- Frame
- JH2RC635*CK000001 - JH2RC635*CK099999
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $3.77 |
||
|
2
|
2
17516-KCZ-000ZB Trim *nh1*Digital silver metallic NHA30M; |
17516-KCZ-000ZB |
from US $2.52 |
||
|
3
|
3
50100-MGS-D30ZA Frame *nh389m*Digital silver metallic NHA30M; |
50100-MGS-D30ZA |
US $3,110.32 |
||
|
4
|
4
50191-MGS-D30 Collar a, r. eng hgr |
50191-MGS-D30 |
from US $6.94 |
||
|
5
|
5
50192-MGS-D30 Collar a, l. eng hgr |
50192-MGS-D30 |
from US $10.49 |
||
|
6
|
6
50193-MGS-D30 Collar b, eng hgr |
50193-MGS-D30 |
from US $4.93 |
||
|
7
|
7
50194-MGS-D30 Collar c, r. eng hgr |
50194-MGS-D30 |
from US $9.86 |
||
|
8
|
8
50195-MGS-D30 Collar c, l. eng hgr |
50195-MGS-D30 |
from US $10.64 |
||
|
11
|
11
50230-MGS-D30 Stay set, fr. tank |
50230-MGS-D30 |
US $19.06 |
||
|
12
|
12
50232-MGS-D30 Stay, fr. tank |
50232-MGS-D30 |
US $19.06 |
||
|
13
|
13
50233-MGS-D30 Rubber, cross plate |
50233-MGS-D30 |
from US $0.92 |
||
|
14
|
14
50234-MGS-T50 Plate, center cross |
50234-MGS-T50 |
from US $65.33 |
||
|
15
|
15
50236-MGS-D30 Plate b, cross |
50236-MGS-D30 |
from US $79.56 |
||
|
16
|
16
50237-MGS-D30 Stay, r. a/clnr hsg |
50237-MGS-D30 |
US $15.28 |
||
|
17
|
17
50238-MGS-D30 Stay, l. a/clnr hsg |
50238-MGS-D30 |
US $12.41 |
||
|
18
|
18
50239-MGS-D30 Rubber, cross plate |
50239-MGS-D30 |
from US $6.81 |
||
|
19
|
19
80123-GN5-900 Band, tool |
80123-GN5-900 |
from US $3.33 |
||
|
20
|
20
81230-MGS-D30 Box |
81230-MGS-D30 |
from US $10.33 |
||
|
22
|
22
90103-MGS-D30 Bolt, flg (12x276) |
90103-MGS-D30 |
from US $15.50 |
||
|
23
|
23
90104-MGS-D30 Bolt, flg (12x168) |
90104-MGS-D30 |
from US $10.95 |
||
|
24
|
24
90106-KSE-000 Screw, pan (6x12) |
90106-KSE-000 |
from US $1.41 |
||
|
25
|
25
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.70 |
||
|
26
|
26
90364-MEJ-000 Nut flange 12mm |
90364-MEJ-000 |
from US $1.92 |
||
|
30
|
30
94050-12000 Nut, flange, 12mm |
94050-12000 |
from US $0.81 |
||
|
32
|
32
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.32 |
||
|
33
|
33
95701-060-220-8 BoltFLANGE, 6X22 |
95701-060-220-8 |
from US $0.59 |
||
|
36
|
36
95701-120-350-8 BoltFLANGE, 12X35 |
95701-120-350-8 |
from US $1.04 |
||
|
37
|
37
95701-120-450-8 BoltFLANGE, 12X45 |
95701-120-450-8 |
from US $1.18 |
||
|
38
|
38
95701-120-550-8 BoltFLANGE, 12X55 |
95701-120-550-8 |
from US $1.18 |
||
|
39
|
39
95701-120-800-8 BoltFLANGE, 12X80 |
95701-120-800-8 |
from US $1.48 |
