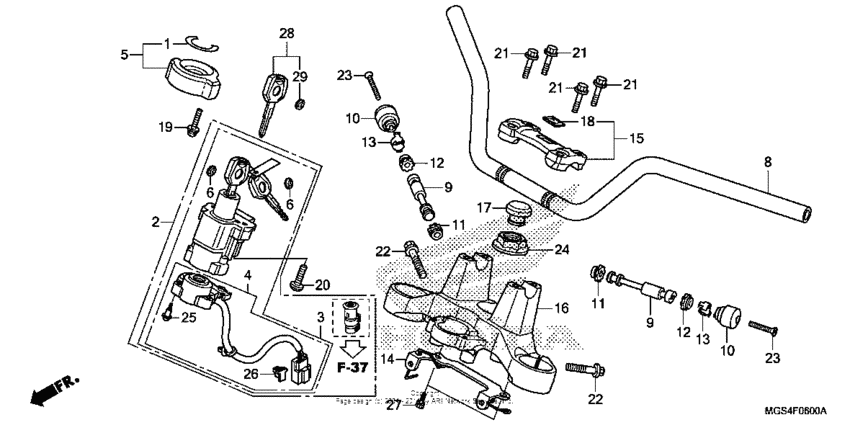

Handlebar + top bridge Diagram Honda NC700
- Year
- 2012
- Model code
- NC700X AC
- Sales region
- USA
- Frame
- JH2RC635*CK000001 - JH2RC635*CK099999
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30433-MBW-602 Seal |
30433-MBW-602 |
from US $3.18 |
||
|
2
|
2
35010-MGS-A30
Lock set
|
35010-MGS-A30 |
— | ||
| replacement | |||||
|
2
|
2
35010-MGS-A31 LOCK SET |
35010-MGS-A31 |
from US $249.22 |
||
|
3
|
3
35100-MGS-A31
Switch assy
|
35100-MGS-A31 |
— | ||
|
4
|
4
35101-MGS-D31 Base, contact |
35101-MGS-D31 |
from US $49.29 |
||
|
5
|
5
35106-MAT-A00 Cover |
35106-MAT-A00 |
from US $6.59 |
||
|
6
|
6
35113-MFJ-D01 Emblem, key |
35113-MFJ-D01 |
from US $2.74 |
||
|
8
|
8
53100-MGS-305ZA
Handlebar *nh105*
Digital silver metallic NHA30M; |
53100-MGS-305ZA |
— | ||
| replacement | |||||
|
8
|
8
53100-MGS-D30ZA PIPE STEERING HANDLDigital silver metallic NHA30M; |
53100-MGS-D30ZA |
from US $190.40 |
||
|
9
|
9
53105-KV3-000 Weight, handlebar |
53105-KV3-000 |
from US $16.73 |
||
|
10
|
10
53105-MK4-620 Weight, handlebar |
53105-MK4-620 |
from US $10.24 |
||
|
11
|
11
53106-KR3-000 Rubber a |
53106-KR3-000 |
from US $3.18 |
||
|
12
|
12
53107-MY1-000 Rubber |
53107-MY1-000 |
from US $3.70 |
||
|
13
|
13
53108-KR3-770 Ring |
53108-KR3-770 |
from US $4.59 |
||
|
14
|
14
53111-MGS-D30 Clamp, Cable |
53111-MGS-D30 |
from US $9.92 |
||
|
15
|
15
53130-MGS-D30ZA Holder assy. *nh105*Digital silver metallic NHA30M; |
53130-MGS-D30ZA |
from US $63.10 |
||
|
16
|
16
53230-MGS-D30 Bridge, fork top |
53230-MGS-D30 |
from US $155.04 |
||
|
17
|
17
53232-MJ4-670 Cap, steering nut |
53232-MJ4-670 |
from US $8.88 |
||
|
18
|
18
86150-KPG-901 Emblem, product |
86150-KPG-901 |
from US $2.12 |
||
|
19
|
19
90020-MBW-610 Screw-washer (5x22) |
90020-MBW-610 |
from US $1.55 |
||
|
20
|
20
90107-MBG-000 Bolt, one-way (8mm) |
90107-MBG-000 |
from US $2.37 |
||
|
21
|
21
90111-362-000 Bolt, flange (8x36) |
90111-362-000 |
from US $2.38 |
||
|
22
|
22
90160-MGJ-D00 BOLT (8X32) |
90160-MGJ-D00 |
from US $3.92 |
||
|
23
|
23
90191-KBG-000 Screw, oval (6x65) |
90191-KBG-000 |
from US $1.78 |
||
|
24
|
24
90304-MCF-000 Nut |
90304-MCF-000 |
from US $10.80 |
||
|
25
|
25
91059-KY2-711 Screw, tap (3x16) |
91059-KY2-711 |
from US $2.22 |
||
|
26
|
26
91533-MGS-D30 Clip, connector |
91533-MGS-D30 |
from US $1.33 |
||
|
27
|
27
96600-060-160-8 BoltSOCKET, 6X16 |
96600-060-160-8 |
from US $0.59 |
||
|
28
|
28
35121-MGS-A31 Key, blank(Optional). |
35121-MGS-A31 |
from US $21.90 |
||
|
29
|
29
35113-MFJ-D01 Emblem, key(Optional). |
35113-MFJ-D01 |
from US $2.74 |
||
