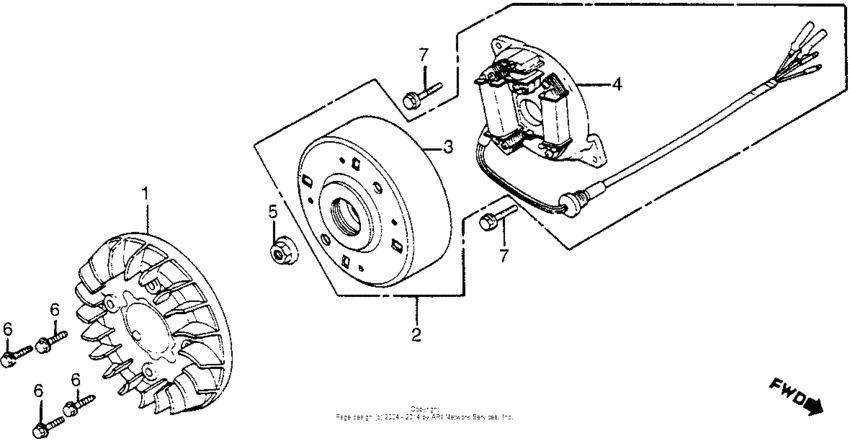

Alternator Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19510-GC8-000
Fan comp,cooling
|
19510-GC8-000 |
— | ||
|
2
|
2
31100-GN3-671
Alternator assy.
|
31100-GN3-671 |
— | ||
|
3
|
3
31110-GN3-671
Rotor
|
31110-GN3-671 |
— | ||
|
4
|
4
31120-GC8-721
Stator Comp
|
31120-GC8-721 |
— | ||
|
5
|
5
90308-357-000 Nut, hex. (10mm) |
90308-357-000 |
from US $4.59 |
||
|
6
|
6
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
7
|
7
96001-060-200-0 BoltFLANGE, 6X20 |
96001-060-200-0 |
from US $0.59 |
