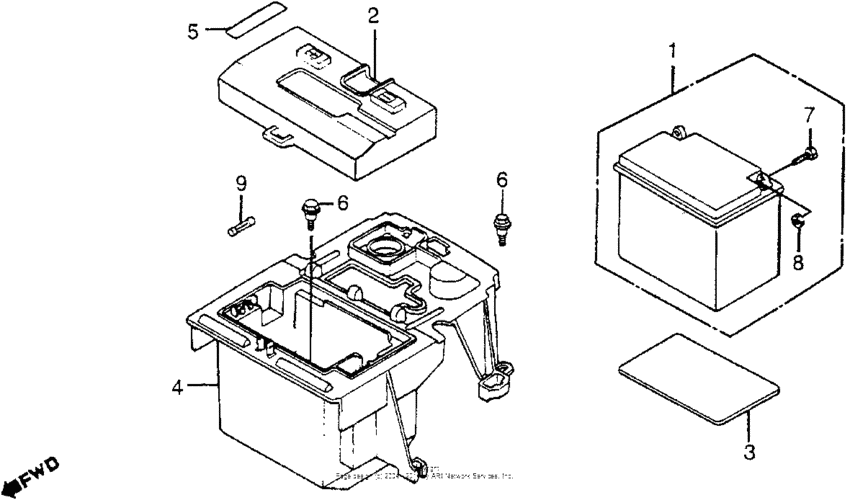

Battery Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-KY4-905AH
Battery (ytx5l-bs)
|
31500-KY4-905AH |
— | ||
|
2
|
2
31506-GN3-670
Cover, battery
|
31506-GN3-670 |
— | ||
|
3
|
3
31508-GA7-000
Cushion,battery
|
31508-GA7-000 |
— | ||
|
4
|
4
50325-GM9-000
Case, battery
|
50325-GM9-000 |
— | ||
|
5
|
5
87139-463-670 Label, high altitude |
87139-463-670 |
from US $3.77 |
||
|
6
|
6
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
7
|
7
90122-GM4-000 Bolt |
90122-GM4-000 |
US $4 |
||
|
8
|
8
90306-107-000
Nut,battery
|
90306-107-000 |
— | ||
|
9
|
9
9820011000 Fuse a (10a) |
9820011000 |
from US $0.59 |
