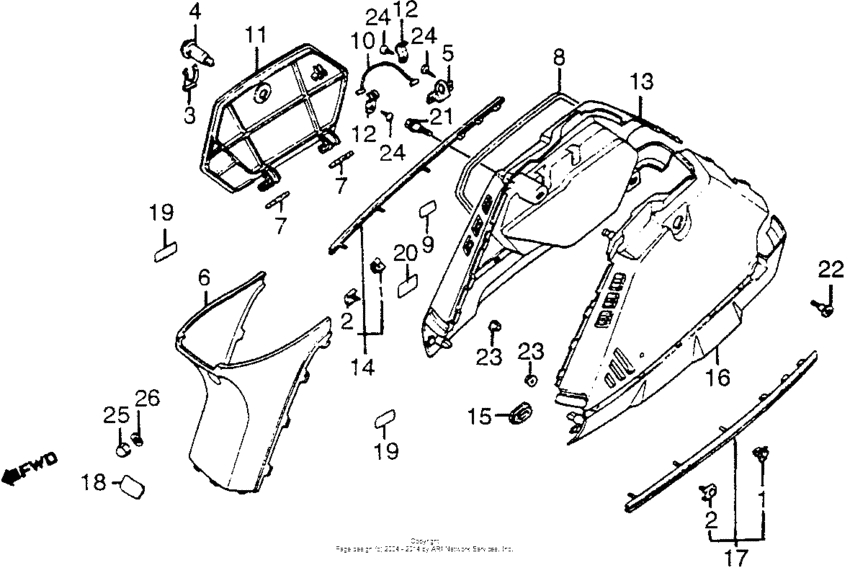

Center cover + body cover Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64308-GM9-000
Clip, molding
|
64308-GM9-000 |
— | ||
|
2
|
2
64313-GN3-670
Clip a, molding
|
64313-GN3-670 |
— | ||
|
3
|
3
75581-673-000 SpringLOCK KEY SETTING |
75581-673-000 |
from US $2.60 |
||
|
4
|
4
77239-GE8-003
Lock,box(type-1)
|
77239-GE8-003 |
— | ||
|
4
|
4
77249-GE8-003
Lock,box(type2)
|
77249-GE8-003 |
— | ||
|
5
|
5
80107-GE8-000
Pl,trunk,lid,lock
|
80107-GE8-000 |
— | ||
|
6
|
6
80151-GM9-000ZB
Cover *nh122*
|
80151-GM9-000ZB |
— | ||
|
7
|
7
81143-GC8-000 Pin, box lid (inner) |
81143-GC8-000 |
from US $3.85 |
||
|
8
|
8
81204-GM9-000
Seal, trunk lid
|
81204-GM9-000 |
— | ||
|
9
|
9
81218-GC2-830
Lbl,trunk caution
|
81218-GC2-830 |
— | ||
|
10
|
10
81219-GM9-000
Stopper, lid
|
81219-GM9-000 |
— | ||
|
11
|
11
81221-GM9-000ZA
Lid, trunk *r110*
|
81221-GM9-000ZA |
— | ||
|
11
|
11
81221-GM9-000ZC
Lid, trunk *b106*
|
81221-GM9-000ZC |
— | ||
|
12
|
12
81222-GA7-810 Stay, lid stopper |
81222-GA7-810 |
from US $3.48 |
||
|
13
|
13
83500-GN3-670ZA
Cvr, r. body *r110*
|
83500-GN3-670ZA |
— | ||
|
13
|
13
83500-GN3-670ZC
Cvr, r. body *b106*
|
83500-GN3-670ZC |
— | ||
|
14
|
14
83503-GN3-670ZA
Molding, r. (type1)
|
83503-GN3-670ZA |
— | ||
|
15
|
15
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
16
|
16
83600-GN3-670ZA
Cvr, l. body *r110*
|
83600-GN3-670ZA |
— | ||
|
16
|
16
83600-GN3-670ZC
Cvr, l. body *b106*
|
83600-GN3-670ZC |
— | ||
|
17
|
17
83603-GN3-670ZA
Molding, l. (type1)
|
83603-GN3-670ZA |
— | ||
|
18
|
18
87505-GN3-670
Label, caution
|
87505-GN3-670 |
— | ||
|
19
|
19
87511-323-670 Label, helmet holder |
87511-323-670 |
from US $3.55 |
||
|
20
|
20
87542-GA7-600
Mark,maintcaution
|
87542-GA7-600 |
— | ||
|
21
|
21
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
22
|
22
90142-GC8-000 Bolt, cover setting |
90142-GC8-000 |
from US $3.40 |
||
|
23
|
23
90202-KE8-700 Nut,washer,4mm |
90202-KE8-700 |
US $4 |
||
|
24
|
24
93903-34310 ScrewTAPPING, 4X12 |
93903-34310 |
from US $0.38 |
||
|
25
|
25
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
26
|
26
9410306200 Washer, plain, 6mm |
9410306200 |
from US $0.44 |
