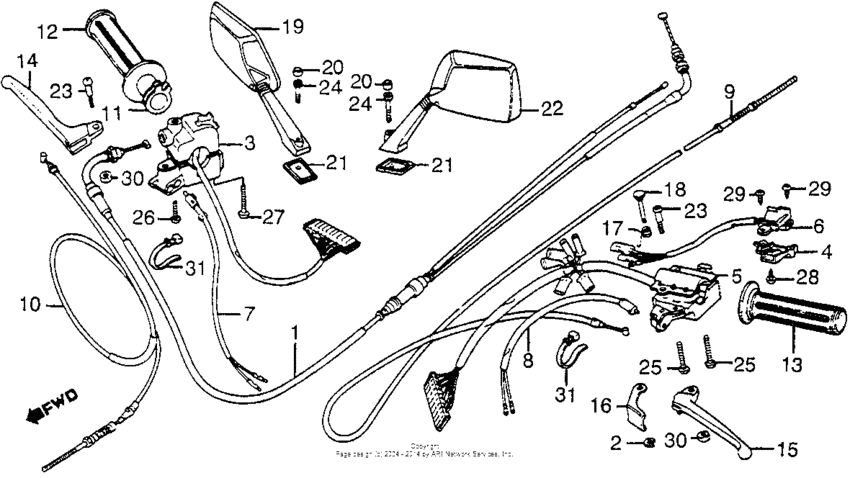

Control levers + switches + cables Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-GN3-671
Cable comp.,throt
|
17910-GN3-671 |
— | ||
|
2
|
2
30158-700-010 E-clip3MM |
30158-700-010 |
from US $1.14 |
||
|
3
|
3
35130-GN3-671
Switch assy
|
35130-GN3-671 |
— | ||
|
4
|
4
35153-GM9-003
Spacer
|
35153-GM9-003 |
— | ||
|
5
|
5
35200-GN3-670
Sw,assy.,winker
|
35200-GN3-670 |
— | ||
|
6
|
6
35310-GN3-670
Sub-assy.
|
35310-GN3-670 |
— | ||
|
7
|
7
35340-GBJ-000 Sw assy,fr stop |
35340-GBJ-000 |
from US $12.73 |
||
|
8
|
8
35340-GAH-710 Sw assy,fr stop |
35340-GAH-710 |
US $12.88 |
||
|
9
|
9
43450-GN3-010
Cable comp.,rr.br
|
43450-GN3-010 |
— | ||
|
10
|
10
45450-GN3-010
Cable comp.,fr.br
|
45450-GN3-010 |
— | ||
|
11
|
11
53141-GC8-000 Pipe,throt.grip |
53141-GC8-000 |
US $7.99 |
||
|
12
|
12
53165-GC8-000 Grip, r. handle |
53165-GC8-000 |
from US $9.11 |
||
|
13
|
13
53166-GC8-000 Grip, l. handle |
53166-GC8-000 |
from US $9.03 |
||
|
14
|
14
53175-196-000 Lever,r.strg.hndl |
53175-196-000 |
from US $14.21 |
||
| replacement | |||||
|
14
|
14
53175-196-600 Lever, r. handlebar |
53175-196-600 |
from US $13.91 |
||
|
14
|
14
53175-196-600 Lever, r. handlebar |
53175-196-600 |
from US $13.91 |
||
|
15
|
15
53178-GC8-000 Lever,l.strg.hndl |
53178-GC8-000 |
from US $11.10 |
||
|
16
|
16
53181-187-000 Lever, parking |
53181-187-000 |
from US $13.74 |
||
|
17
|
17
53182-155-010 Spring, lever return |
53182-155-010 |
from US $3.18 |
||
|
18
|
18
53183-155-000 Pin |
53183-155-000 |
from US $5.21 |
||
|
19
|
19
88110-GM9-740ZB
Mirror,r.*type 2*
|
88110-GM9-740ZB |
— | ||
|
20
|
20
88112-GC8-000
Cap (8mm)
|
88112-GC8-000 |
— | ||
|
21
|
21
88115-KJ9-000
Rubber,mir,set
|
88115-KJ9-000 |
— | ||
|
22
|
22
88120-GM9-740ZB
Mirror,l.*type 2*
|
88120-GM9-740ZB |
— | ||
|
23
|
23
90115-147-000 Screw (5mm) |
90115-147-000 |
from US $2.44 |
||
|
24
|
24
90186-GM9-000 Bolt, socket (8x55) |
90186-GM9-000 |
from US $3.70 |
||
|
25
|
25
93500-050-280-H ScrewPAN, 5X28 |
93500-050-280-H |
from US $0.44 |
||
|
26
|
26
93500-050320A Screw, pan, 5x32 |
93500-050320A |
from US $0.44 |
||
|
27
|
27
93500-050450A Screw, pan, 5x45 |
93500-050450A |
from US $0.52 |
||
|
28
|
28
93901-22380 Screw,tap.3x12 |
93901-22380 |
US $0.37 |
||
|
29
|
29
93901-32220 ScrewTAPPING, 3X10 |
93901-32220 |
from US $0.37 |
||
|
30
|
30
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
31
|
31
9501462100 Band b1, wire |
9501462100 |
from US $1.18 |
||
