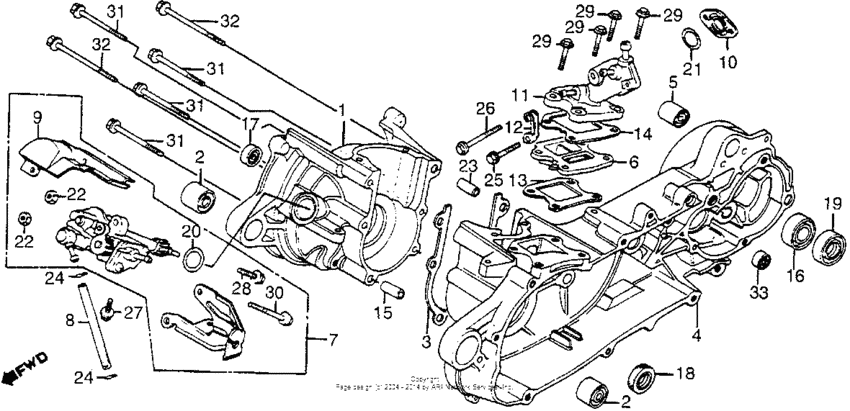

Crankcase + oil pump Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11101-GN3-670 Crankcase, rUse up to Engine SN 5006293 |
11101-GN3-670 |
US $249.22 |
||
|
1
|
1
11101-GN3-671
Crankcase, r.
Use up to Engine SN 5006293 |
11101-GN3-671 |
— | ||
|
2
|
2
11102-187-003 Bush, engine hanger rubber |
11102-187-003 |
from US $7.93 |
||
|
3
|
3
11191-GC8-020
Gasket, crankcase
|
11191-GC8-020 |
— | ||
|
4
|
4
11201-GN3-670
Crankcase, l.
|
11201-GN3-670 |
— | ||
|
5
|
5
11203-GC7-300 Bush, rr. (lower) |
11203-GC7-300 |
from US $2.70 |
||
|
6
|
6
14100-GY1-610
Valve, reed
|
14100-GY1-610 |
— | ||
|
7
|
7
15100-GC8-722
Oil pump assy
|
15100-GC8-722 |
— | ||
|
8
|
8
15525-GJ3-600
Tube, oil passage
|
15525-GJ3-600 |
— | ||
|
9
|
9
15532-GC8-000
Ins.,oil pump
|
15532-GC8-000 |
— | ||
|
10
|
10
16211-GC8-640
Insulator, carb
|
16211-GC8-640 |
— | ||
|
11
|
11
17100-GC8-000 Pipe comp,in. |
17100-GC8-000 |
US $43.98 |
||
|
12
|
12
17104-GC7-000
Stay,tube
|
17104-GC7-000 |
— | ||
|
13
|
13
17111-GY1-610
Gasket, in. pipe
|
17111-GY1-610 |
— | ||
|
14
|
14
17112-GY1-610
Gasket, in. pipe
|
17112-GY1-610 |
— | ||
|
15
|
15
90705-639-000 Pin dowel 8x20.5 |
90705-639-000 |
from US $4.34 |
||
|
16
|
16
42630-GK4-003 Bearing, radial ball |
42630-GK4-003 |
from US $16.59 |
||
|
17
|
17
91201-GC8-004 Oil seal,20x30x7 |
91201-GC8-004 |
US $6.69 |
||
|
18
|
18
91202-KBN-922 Oil seal,20x31x7 |
91202-KBN-922 |
from US $7.77 |
||
|
19
|
19
91254-GE8-005 Oil seal (24x40x7) |
91254-GE8-005 |
from US $5.92 |
||
|
20
|
20
91301-147-023 O-ring (18.3x2.3) |
91301-147-023 |
from US $3.16 |
||
|
21
|
21
91304-GC8-003 O-ring (23x2.4) |
91304-GC8-003 |
from US $2.56 |
||
|
22
|
22
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
23
|
23
94301-10200 Dowel pin10X20 |
94301-10200 |
from US $1.04 |
||
|
24
|
24
9500202650 Clip, tube (b6.5) |
9500202650 |
from US $0.44 |
||
|
25
|
25
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
25
|
25
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
25
|
25
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
26
|
26
95701-0603500 Bolt, flange, 6x35 |
95701-0603500 |
from US $0.59 |
||
|
27
|
27
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
28
|
28
96001-060-180-0 BoltFLANGE, 6X18 |
96001-060-180-0 |
from US $0.59 |
||
|
29
|
29
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
30
|
30
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
31
|
31
96001-060-450-0 Bolt, flange (6x45) |
96001-060-450-0 |
from US $0.81 |
||
|
32
|
32
96001-060-600-0 BoltFLANGE, 6X60 |
96001-060-600-0 |
from US $0.81 |
||
|
33
|
33
96100-6201300 Bearing (6201) |
96100-6201300 |
from US $4.44 |
||
