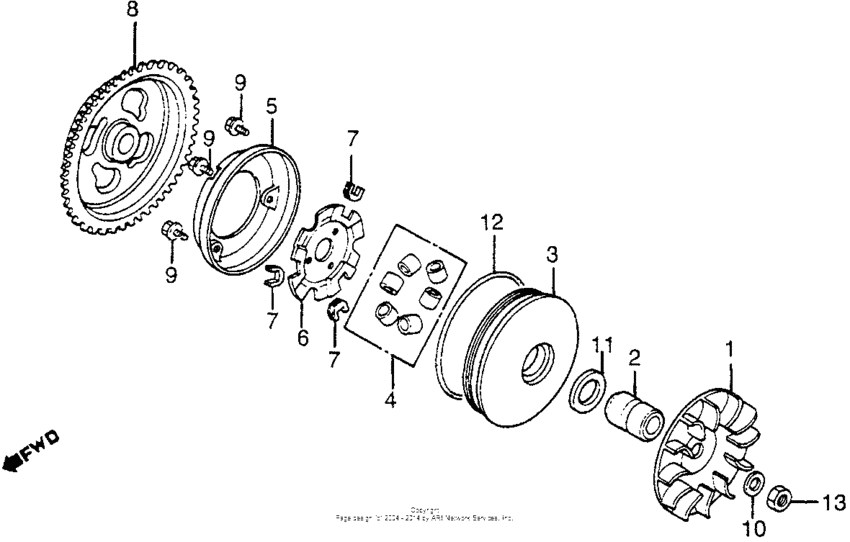

Drive face Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22102-GN3-670
Face,drive
|
22102-GN3-670 |
— | ||
|
2
|
2
22105-GC8-010
Boss, drive face
|
22105-GC8-010 |
— | ||
|
3
|
3
22110-GN3-670
Face comp.,movabl
|
22110-GN3-670 |
— | ||
|
4
|
4
22123-GC8-305 Roller set,weight |
22123-GC8-305 |
from US $16.86 |
||
|
5
|
5
22126-GC8-000
Seal,movable face
|
22126-GC8-000 |
— | ||
|
6
|
6
22131-GN3-670
Plate,ramp
|
22131-GN3-670 |
— | ||
|
7
|
7
22132-GN3-670
Piece,slide
|
22132-GN3-670 |
— | ||
|
8
|
8
28220-GN3-010
Gear, kick starter
|
28220-GN3-010 |
— | ||
|
9
|
9
90005-187-000 Bolt, flange (4x10) |
90005-187-000 |
from US $1.31 |
||
| replacement | |||||
|
9
|
9
90005-GAH-600 Bolt-washer (4x10) |
90005-GAH-600 |
from US $2.29 |
||
|
10
|
10
90401-437-000 Washer, plain, 10mm |
90401-437-000 |
from US $2.74 |
||
|
11
|
11
91203-GC8-003 Seal,24x31x3.5 |
91203-GC8-003 |
from US $8.29 |
||
|
12
|
12
91305-GC8-003 O-ring (87.2x2.6) |
91305-GC8-003 |
from US $5.25 |
||
|
13
|
13
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
