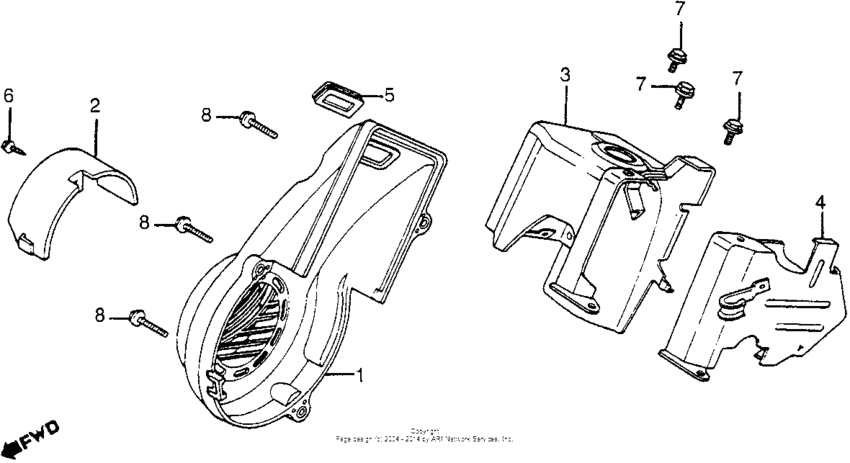

Fan cover + shroud + air guide cover Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19610-GC8-000
Cover comp,fan
|
19610-GC8-000 |
— | ||
|
2
|
2
19615-GC7-000
Cover,air guide
|
19615-GC7-000 |
— | ||
|
3
|
3
19620-GN3-670
Shroud a
|
19620-GN3-670 |
— | ||
|
4
|
4
19630-GC8-000 Shroud comp.b |
19630-GC8-000 |
US $31.54 |
||
|
5
|
5
19650-GN3-670
Cap,fan cover
|
19650-GN3-670 |
— | ||
|
6
|
6
90006-GN3-670
Screw, tap (4x12)
|
90006-GN3-670 |
— | ||
|
7
|
7
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
8
|
8
96001-060-200-0 BoltFLANGE, 6X20 |
96001-060-200-0 |
from US $0.59 |
