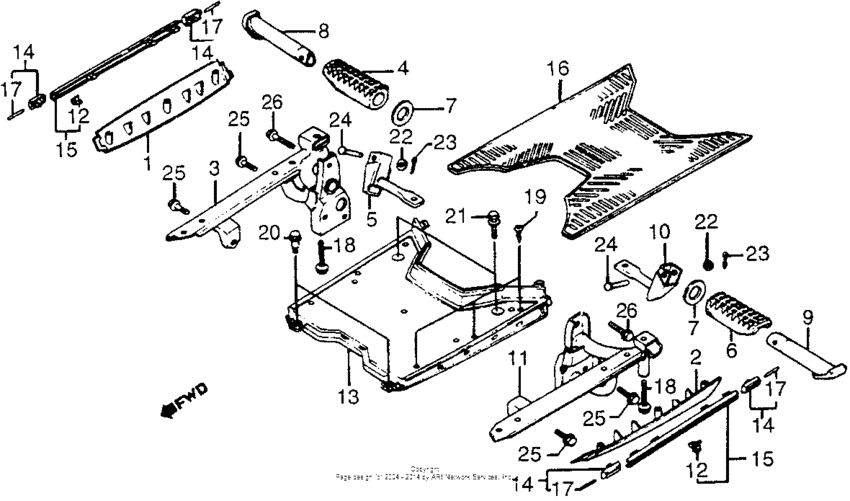

Floor panel + floor board + pillion footpeg Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50613-GM9-750ZD
Board, r. *r110*
|
50613-GM9-750ZD |
— | ||
|
1
|
1
50613-GM9-750ZF
Board, r. *b106*
|
50613-GM9-750ZF |
— | ||
|
2
|
2
50614-GM9-750ZD
Board, l. *r110*
|
50614-GM9-750ZD |
— | ||
|
2
|
2
50614-GM9-750ZF
Board, l. *b106*
|
50614-GM9-750ZF |
— | ||
|
3
|
3
50700-GN3-670
Board, r. floor
|
50700-GN3-670 |
— | ||
|
4
|
4
50710-KG8-000 R,pilion step rub |
50710-KG8-000 |
US $8.62 |
||
|
5
|
5
50711-GN3-670 Bracket, r |
50711-GN3-670 |
US $19.30 |
||
|
6
|
6
50712-KG8-000
Step,rub,l.p
|
50712-KG8-000 |
— | ||
|
7
|
7
50715-KE8-000 Plate |
50715-KE8-000 |
from US $2.96 |
||
|
8
|
8
50715-KG8-000
Bar,r pilion step
|
50715-KG8-000 |
— | ||
|
9
|
9
50718-KG8-000
Bar,l,p.step
|
50718-KG8-000 |
— | ||
|
10
|
10
50721-GN3-700ZA
Bracket, l
|
50721-GN3-700ZA |
— | ||
|
11
|
11
50800-GN3-670
Board, l. floor
|
50800-GN3-670 |
— | ||
|
12
|
12
64308-GM9-000
Clip, molding
|
64308-GM9-000 |
— | ||
|
13
|
13
64310-GM9-010ZB
Panel, floor *nh122*
|
64310-GM9-010ZB |
— | ||
|
14
|
14
64311-GM9-740ZB
Cover, fr. (type1)
|
64311-GM9-740ZB |
— | ||
|
15
|
15
64312-GM9-000ZA
Molding (type1)
|
64312-GM9-000ZA |
— | ||
|
16
|
16
64320-GN3-670
Floor mat
|
64320-GN3-670 |
— | ||
|
17
|
17
87149-GM9-300ZA
Stripe (type1)
|
87149-GM9-300ZA |
— | ||
|
18
|
18
90051-GN3-000
Bolt, flange (10x76)
|
90051-GN3-000 |
— | ||
|
19
|
19
90107-GM9-000
Screw,tapping 3x1
|
90107-GM9-000 |
— | ||
|
20
|
20
90110-147-000 Bolt, flange (6mm) |
90110-147-000 |
from US $3.27 |
||
|
21
|
21
93404-0602000 Bolt-washer, 6x20 |
93404-0602000 |
from US $0.52 |
||
|
22
|
22
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
23
|
23
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
24
|
24
9501581000 Pin a, pillion step |
9501581000 |
from US $1.48 |
||
|
25
|
25
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
|
26
|
26
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
