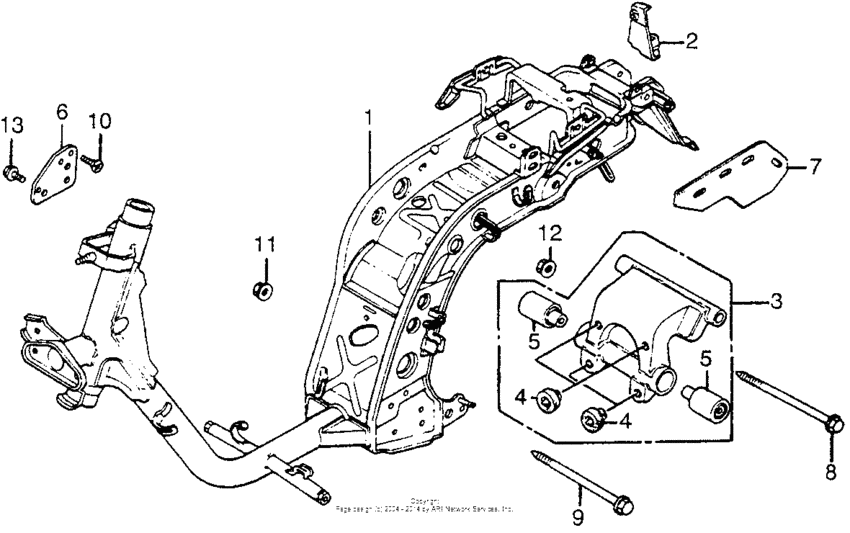

Frame Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50100-GN3-670ZA
Frame *nh1*
|
50100-GN3-670ZA |
— | ||
|
2
|
2
50147-GN3-670
Stay
|
50147-GN3-670 |
— | ||
|
3
|
3
50350-GN3-672
Bracket, eng hgr
|
50350-GN3-672 |
— | ||
|
4
|
4
50352-GC8-000 Rubber,stopper |
50352-GC8-000 |
US $3.11 |
||
|
5
|
5
50353-GE8-000
Bush,eng.hang.rub
|
50353-GE8-000 |
— | ||
|
6
|
6
53128-GM9-000
Stay b, handle lock
|
53128-GM9-000 |
— | ||
|
7
|
7
81205-GN3-670
Rubber, water guide
|
81205-GN3-670 |
— | ||
|
8
|
8
90103-GN3-670
Bolt, flg (10x186)
|
90103-GN3-670 |
— | ||
|
9
|
9
90103-147-000 Bolt, engine hanger |
90103-147-000 |
from US $7.84 |
||
|
10
|
10
90164-028-000 Screw (6x12) |
90164-028-000 |
from US $1.92 |
||
|
11
|
11
90351-GE8-000 Nut,selflock,10mm |
90351-GE8-000 |
US $7.67 |
||
|
12
|
12
90351-GJ8-000
Nut (10mm)
|
90351-GJ8-000 |
— | ||
|
13
|
13
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
