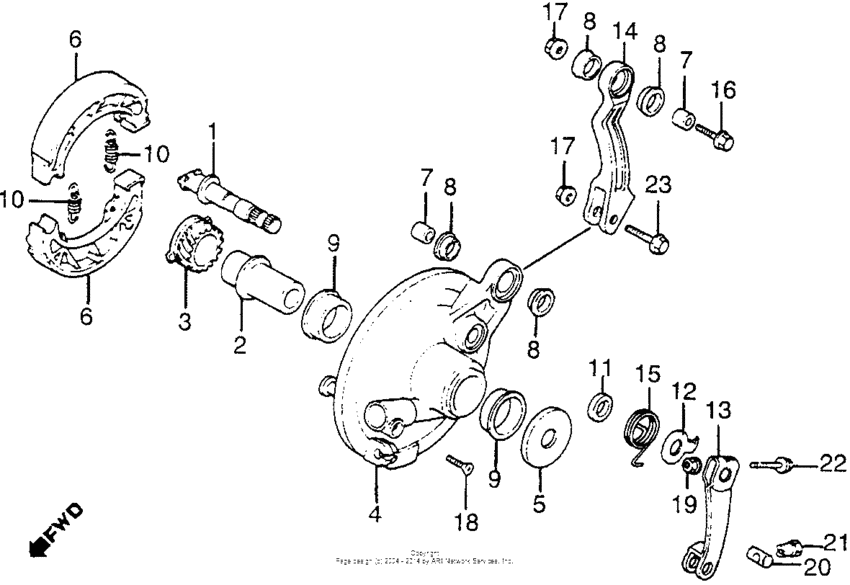

Front brake panel Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43141-400-010 Cam, rr. brake |
43141-400-010 |
from US $14.80 |
||
|
2
|
2
44312-GM9-000 Collar,a,fr.brk |
44312-GM9-000 |
US $8.58 |
||
|
3
|
3
44806-GM9-003
Gear,spdmt
|
44806-GM9-003 |
— | ||
|
4
|
4
45010-GM9-305ZA
Panel sub *nh35m*
|
45010-GM9-305ZA |
— | ||
|
5
|
5
45104-GM9-003 Dust seal,caliper |
45104-GM9-003 |
US $3.92 |
||
|
6
|
6
06450-178-932 Shoe set, brake |
06450-178-932 |
from US $33.07 |
||
|
6
|
6
45120-096-652 *451a2-096-305 |
45120-096-652 |
US $7.48 |
||
|
7
|
7
45124-GM9-000
Collar, torque link
|
45124-GM9-000 |
— | ||
|
8
|
8
45125-GM9-003 Bush, torque link |
45125-GM9-003 |
US $9.60 |
||
|
9
|
9
45131-GM9-710 Bush.fr brk |
45131-GM9-710 |
US $3.92 |
||
|
10
|
10
45133-028-000 Spring, brake shoe |
45133-028-000 |
from US $2.15 |
||
|
11
|
11
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
12
|
12
45145-GM9-000
Indicator, fr. brake
|
45145-GM9-000 |
— | ||
|
13
|
13
45410-GM9-000
Arm, fr. brake
|
45410-GM9-000 |
— | ||
|
14
|
14
45432-GM9-000
Torque link, fr.
|
45432-GM9-000 |
— | ||
|
15
|
15
45435-GM9-000 Spg.,brk.arm |
45435-GM9-000 |
US $3.92 |
||
|
16
|
16
90105-GN3-000 Bolt, flange (8x28) |
90105-GN3-000 |
US $3.47 |
||
|
17
|
17
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
18
|
18
93700-050180A Screw, oval (5x18) |
93700-050180A |
from US $0.37 |
||
|
19
|
19
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
20
|
20
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
21
|
21
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
22
|
22
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
22
|
22
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
22
|
22
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
23
|
23
95815-080-320-0 Bolt,flange,8x32 |
95815-080-320-0 |
US $0.74 |
||
