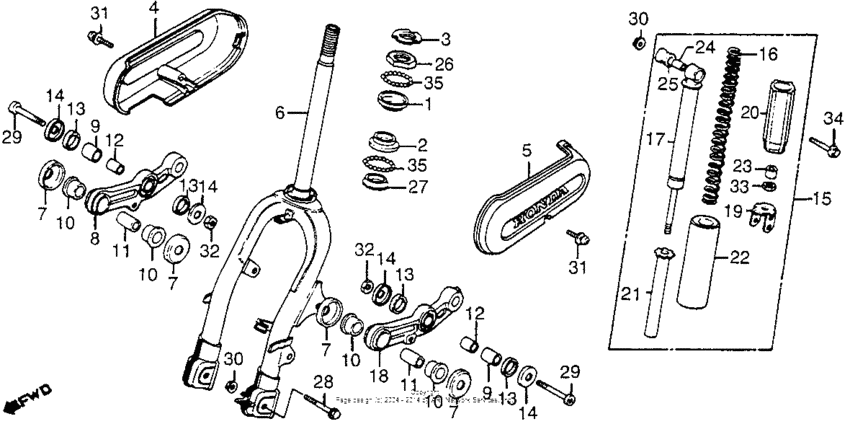

Front fork Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50301-GM0-000 Race, steering upper ball |
50301-GM0-000 |
from US $7.55 |
||
|
2
|
2
50305-GC8-003 Race, steering ball |
50305-GC8-003 |
from US $7.40 |
||
|
3
|
3
50306-147-003
Nut
|
50306-147-003 |
— | ||
|
4
|
4
51103-GM9-000ZA
Cov.pivot*nh-1*
|
51103-GM9-000ZA |
— | ||
|
5
|
5
51104-GM9-000ZA
Cov,pivot*nh-1*
|
51104-GM9-000ZA |
— | ||
|
6
|
6
51105-GM9-000ZA
Fork,fr*nh-1*
|
51105-GM9-000ZA |
— | ||
|
7
|
7
51305-GM9-015 Dust seal,fr.arm |
51305-GM9-015 |
US $4.74 |
||
|
8
|
8
51311-GM9-000 Pivot arm,r.fr |
51311-GM9-000 |
from US $33.37 |
||
|
9
|
9
51312-GN2-003 Bush, fr. fork |
51312-GN2-003 |
from US $3.48 |
||
|
10
|
10
51314-GM9-711 Bush,fr.fork unde |
51314-GM9-711 |
US $8.14 |
||
| replacement | |||||
|
10
|
10
51314-GFZ-J01 Bushfr f0rk und |
51314-GFZ-J01 |
US $6.51 |
||
|
11
|
11
51334-GM9-000 Collar,fr,fork |
51334-GM9-000 |
from US $3.70 |
||
|
12
|
12
51334-GN2-000 Collar, fr |
51334-GN2-000 |
from US $3.48 |
||
|
13
|
13
51335-001-000 Dustseal, cushion |
51335-001-000 |
from US $2 |
||
|
14
|
14
51336-001-000 Cap, fr. (lower) |
51336-001-000 |
from US $2.15 |
||
|
15
|
15
51400-GN3-671
Cushion assy., fr.
|
51400-GN3-671 |
— | ||
|
16
|
16
51401-GN3-671
Spring, fr. fork
|
51401-GN3-671 |
— | ||
|
17
|
17
51410-GN3-671
Damper, fr.
|
51410-GN3-671 |
— | ||
|
18
|
18
51411-GM9-000 Pivot arm,l fr |
51411-GM9-000 |
US $52.12 |
||
|
19
|
19
51420-GN2-003
Joint,fr.cush.bot
|
51420-GN2-003 |
— | ||
|
20
|
20
51421-GM9-003
Case (lower)
|
51421-GM9-003 |
— | ||
|
21
|
21
51458-GG2-003 Guide,fr.cush.spg |
51458-GG2-003 |
from US $4.74 |
||
|
22
|
22
51460-GG2-003ZK
Case, fr. *nh119mu*
|
51460-GG2-003ZK |
— | ||
|
23
|
23
51475-GM9-003
Rubber, stopper
|
51475-GM9-003 |
— | ||
|
24
|
24
52486-074-000 Collar, cushion rubber bush (showa) |
52486-074-000 |
from US $2.37 |
||
|
25
|
25
52489-331-003 Rubber a, joint |
52489-331-003 |
from US $2.37 |
||
|
26
|
26
53211-GC8-003 Race, steering top cone |
53211-GC8-003 |
from US $7.70 |
||
|
27
|
27
53212-GC8-003 Race, steering cone |
53212-GC8-003 |
from US $4.44 |
||
|
28
|
28
90111-GC3-000 Bolt, flange, 8x48 |
90111-GC3-000 |
from US $3.63 |
||
|
29
|
29
90149-041-010 Bolt,fr.cushion |
90149-041-010 |
from US $2.22 |
||
|
30
|
30
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
31
|
31
93891-060-160-7 Screw-washer6X16 |
93891-060-160-7 |
from US $0.52 |
||
|
32
|
32
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
33
|
33
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
34
|
34
95801-0804000 Bolt, flange (8x40) |
95801-0804000 |
from US $0.74 |
||
|
35
|
35
9621105000 Ball, steel, #5 (5/32) |
9621105000 |
from US $0.15 |
||
