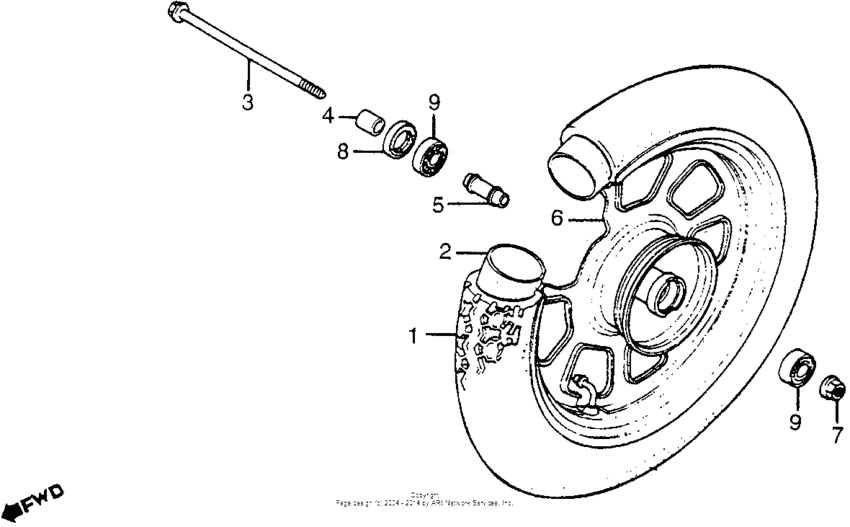

Front wheel Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42711-GC8-671
Tire
|
42711-GC8-671 |
— | ||
|
1
|
1
42711-GC8-672
Tire
|
42711-GC8-672 |
— | ||
|
1
|
1
42711-GC8-673 Tire |
42711-GC8-673 |
US $86.73 |
||
|
2
|
2
42712-098-691 Tube,wheel |
42712-098-691 |
US $26.11 |
||
|
2
|
2
42712-GC8-005 Tube, tire (3.50-10) |
42712-GC8-005 |
US $13.01 |
||
|
3
|
3
44301-GG2-000 Axle,fr.wheel |
44301-GG2-000 |
from US $11.69 |
||
|
4
|
4
44311-GM9-000
Collar,rr.wheel
|
44311-GM9-000 |
— | ||
|
5
|
5
44620-030-000 Collar, fr |
44620-030-000 |
from US $5.62 |
||
|
6
|
6
44650-GE1-671ZA
Wheel comp*nh35m*
|
44650-GE1-671ZA |
— | ||
|
7
|
7
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.26 |
||
|
8
|
8
90754-GM0-003 Dust seal |
90754-GM0-003 |
from US $4.47 |
||
|
9
|
9
90912-GE1-003
B/brg rad n/com
|
90912-GE1-003 |
— |
