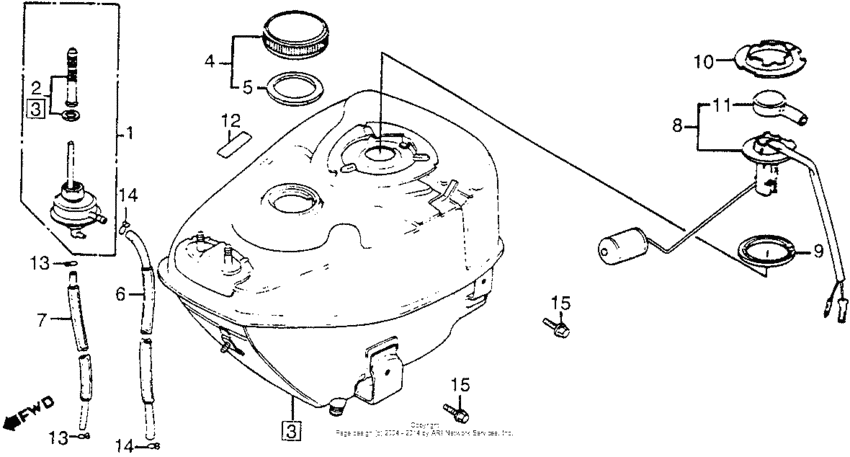

Fuel tank Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-KJ9-005
Cock,auto.fuel
|
16950-KJ9-005 |
— | ||
|
1
|
1
16950-KJ9-000 Cock,fuel.auto |
16950-KJ9-000 |
US $69.70 |
||
|
2
|
2
16952-GF0-005
Screen set,strain
|
16952-GF0-005 |
— | ||
|
3
|
3
175A0-GN3-670
Tank set,fuel
|
175A0-GN3-670 |
— | ||
|
4
|
4
17620-GE7-023 Cap, fuel filler |
17620-GE7-023 |
from US $33.59 |
||
|
5
|
5
17631-096-701
Gasket
|
17631-096-701 |
— | ||
| replacement | |||||
|
5
|
5
17631-096-702 Gasket |
17631-096-702 |
from US $3.98 |
||
|
6
|
6
17681-GM9-000
Tube, fuel (4.5x265)
|
17681-GM9-000 |
— | ||
|
7
|
7
17682-GM9-000
Tube (3.5x190)
|
17682-GM9-000 |
— | ||
|
8
|
8
37800-GN3-670
Fuel unit
|
37800-GN3-670 |
— | ||
|
9
|
9
37801-GA7-700 Packing, base |
37801-GA7-700 |
from US $4.07 |
||
|
10
|
10
37802-GA7-700 Retainer, fuel unit |
37802-GA7-700 |
from US $5.03 |
||
|
10
|
10
37802-GK8-670
Ret.,fuel unit
|
37802-GK8-670 |
— | ||
|
11
|
11
37805-KG8-000 Cov,fuel unit |
37805-KG8-000 |
US $4.88 |
||
|
12
|
12
87512-GC8-670
Label, fuel
|
87512-GC8-670 |
— | ||
|
13
|
13
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
14
|
14
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
15
|
15
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
