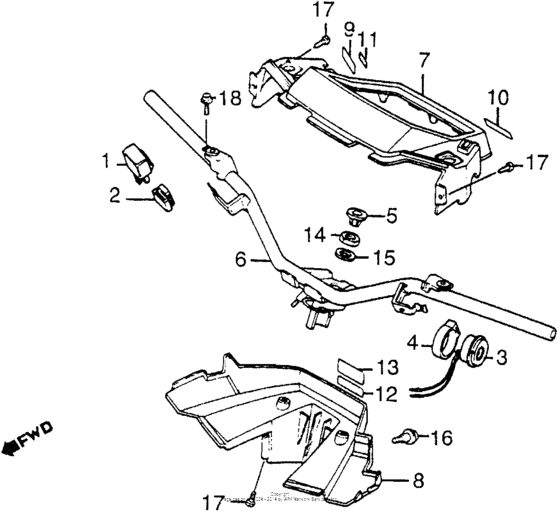

Handlebar + upper handlebarcover Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38301-GN3-672 Relay, turn signal |
38301-GN3-672 |
from US $38.49 |
||
|
2
|
2
38306-GE7-000 Suspension |
38306-GE7-000 |
from US $4.88 |
||
|
3
|
3
38401-GG2-711 Pilot, audible |
38401-GG2-711 |
US $23.39 |
||
|
4
|
4
38402-GC1-000 SuspensionAUDIBLE PILOT |
38402-GC1-000 |
from US $4.29 |
||
|
5
|
5
44835-GA6-000
Plug,strg stem
|
44835-GA6-000 |
— | ||
|
6
|
6
53100-GN3-670
Handlebar
|
53100-GN3-670 |
— | ||
|
7
|
7
53205-GN3-670ZA
Cover *nh122*
|
53205-GN3-670ZA |
— | ||
|
8
|
8
53206-GM9-000ZB
Cover *nh122*
|
53206-GM9-000ZB |
— | ||
|
9
|
9
87120-GE0-300 Label, lighting |
87120-GE0-300 |
US $2.24 |
||
|
10
|
10
87120-GM9-000 Label |
87120-GM9-000 |
US $1.89 |
||
|
11
|
11
87120-GN3-670
Label, engine stop
|
87120-GN3-670 |
— | ||
|
12
|
12
87511-147-670ZB
Label,use *nh-0*
|
87511-147-670ZB |
— | ||
|
13
|
13
87560-174-770ZE Mark (typew) |
87560-174-770ZE |
US $3.89 |
||
|
14
|
14
90301-147-010 Nut, steering stem |
90301-147-010 |
US $10.66 |
||
|
15
|
15
90402-KM1-670 Washer (26x40x2.6) |
90402-KM1-670 |
US $10.76 |
||
|
16
|
16
91508-GC8-000 Screw,pan,5x7 |
91508-GC8-000 |
from US $2.22 |
||
|
17
|
17
93903-24380 ScrewTAPPING, 4X12 |
93903-24380 |
from US $0.37 |
||
|
18
|
18
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
