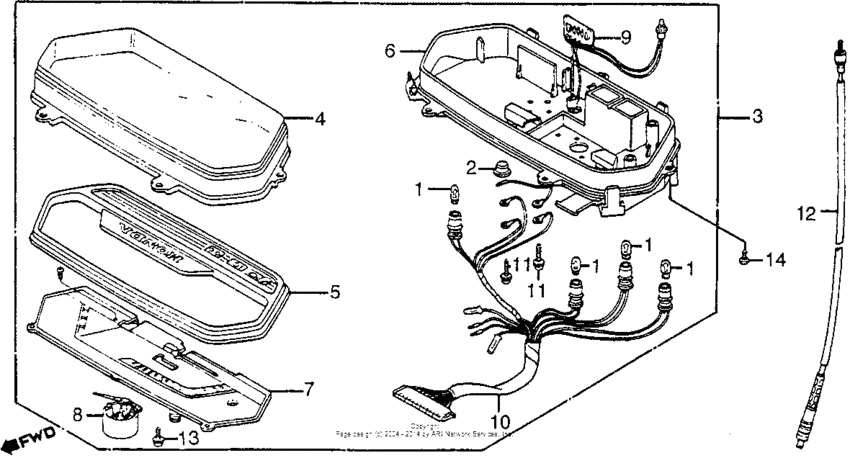

Instruments Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37237-SA5-003 Bulb14V 3.4W) (NS |
37237-SA5-003 |
from US $2.15 |
||
|
2
|
2
37104-GM4-701
Cap
|
37104-GM4-701 |
— | ||
|
3
|
3
37200-GN3-671
Speedometer assy
|
37200-GN3-671 |
— | ||
|
4
|
4
37202-GM9-008
Glass
|
37202-GM9-008 |
— | ||
|
5
|
5
37203-GN3-671
Plate, reflecting
|
37203-GN3-671 |
— | ||
|
6
|
6
37204-GN3-671
Case
|
37204-GN3-671 |
— | ||
|
7
|
7
37210-GN3-671
Speedometer
|
37210-GN3-671 |
— | ||
|
8
|
8
37220-GN3-671
Meter, fuel
|
37220-GN3-671 |
— | ||
|
9
|
9
37230-GN3-671
L.e.d
|
37230-GN3-671 |
— | ||
|
10
|
10
37240-GN3-671
Wire
|
37240-GN3-671 |
— | ||
|
11
|
11
37305-KE5-008 Screw-washer, 3x22 |
37305-KE5-008 |
from US $2.22 |
||
|
12
|
12
44830-GM9-000
Cable comp,spdmt
|
44830-GM9-000 |
— | ||
|
13
|
13
93893-040-120-8 Screw-washer4X12 |
93893-040-120-8 |
from US $0.58 |
||
|
14
|
14
9390125310 Screw, tap (5x16) |
9390125310 |
from US $0.37 |
