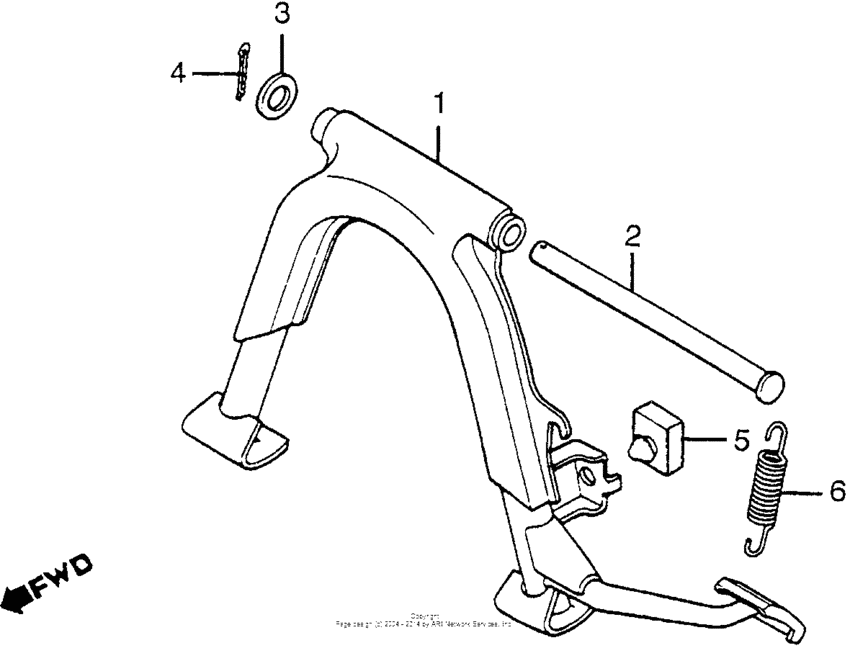

Main stand Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50500-GN3-700
Stand comp.,main
|
50500-GN3-700 |
— | ||
|
2
|
2
50503-GM0-010
Shaft,main stand
|
50503-GM0-010 |
— | ||
|
3
|
3
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
4
|
4
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
4
|
4
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
4
|
4
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
4
|
4
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
4
|
4
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
5
|
5
9501161000 Rubber a, stand stopper |
9501161000 |
from US $0.74 |
||
|
6
|
6
9501471402 Spring d, main stand |
9501471402 |
from US $1.55 |
||
