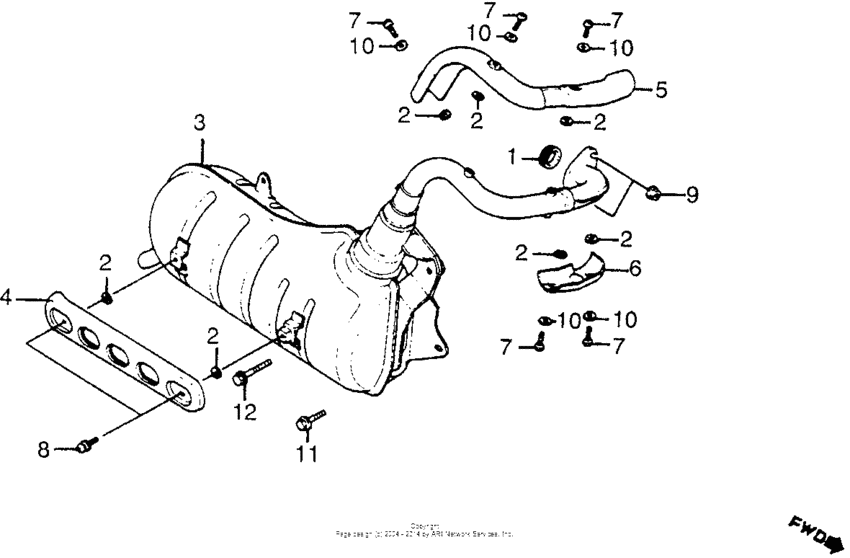

Muffler Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-GE2-920 Gasket,ex.pipe |
18291-GE2-920 |
from US $6.36 |
||
|
2
|
2
18292-167-890 Packing, protector |
18292-167-890 |
from US $2.89 |
||
|
3
|
3
18300-GN3-670
Muffler,exh
|
18300-GN3-670 |
— | ||
|
4
|
4
18318-GM4-000
Protector,muff.
|
18318-GM4-000 |
— | ||
|
5
|
5
18325-GN3-670
Protector,ex.pipe
|
18325-GN3-670 |
— | ||
|
6
|
6
18326-GC8-710
Protr b ex pipe
|
18326-GC8-710 |
— | ||
|
7
|
7
93500-060-080-H ScrewPAN, 6X8 |
93500-060-080-H |
from US $0.44 |
||
|
7
|
7
93500-060080A Screw, pan, 6x8 |
93500-060080A |
from US $0.44 |
||
|
8
|
8
93891-050-100-7 Screw-washer5X10 |
93891-050-100-7 |
from US $0.44 |
||
|
9
|
9
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
10
|
10
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
11
|
11
95701-0802007 Bolt, flange, 8x20 |
95701-0802007 |
from US $0.59 |
||
|
12
|
12
95701-0803207 Bolt, flange (8x32) |
95701-0803207 |
from US $0.78 |
