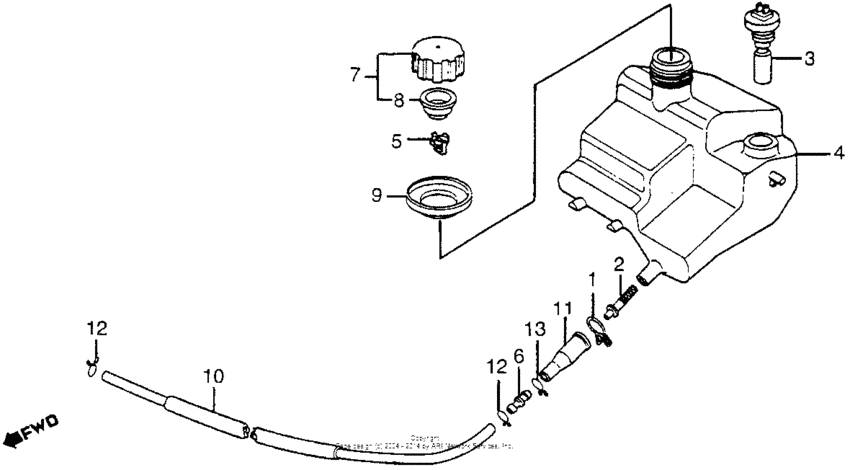

Oil tank Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15772-551-000 ClipBREATHER TUBE |
15772-551-000 |
from US $3.09 |
||
|
1
|
1
15772-551-680 Clip,tube |
15772-551-680 |
US $8.91 |
||
|
2
|
2
17502-187-000 Strainer,oil |
17502-187-000 |
from US $5.03 |
||
|
3
|
3
35410-GN3-014
Switch, oil level
|
35410-GN3-014 |
— | ||
|
4
|
4
55100-GM9-740
Tank, oil
|
55100-GM9-740 |
— | ||
|
5
|
5
55101-GA7-000
Pl,upper level
|
55101-GA7-000 |
— | ||
|
6
|
6
55102-166-000 Joint, oil tube |
55102-166-000 |
from US $3.18 |
||
|
7
|
7
55105-GK8-000 Cap assy.,oil |
55105-GK8-000 |
from US $14.21 |
||
|
8
|
8
55107-GK8-000 Packing,oil cap |
55107-GK8-000 |
from US $7.25 |
||
|
9
|
9
55122-GM9-000
Tray, oil tank
|
55122-GM9-000 |
— | ||
|
10
|
10
55123-GN3-670 Tube,oil,5.3 |
55123-GN3-670 |
US $9.92 |
||
|
11
|
11
55201-GC8-000 Joint,oil strn |
55201-GC8-000 |
US $3.18 |
||
|
12
|
12
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
13
|
13
95002-50000 ClipTUBE(C9) |
95002-50000 |
from US $0.37 |
