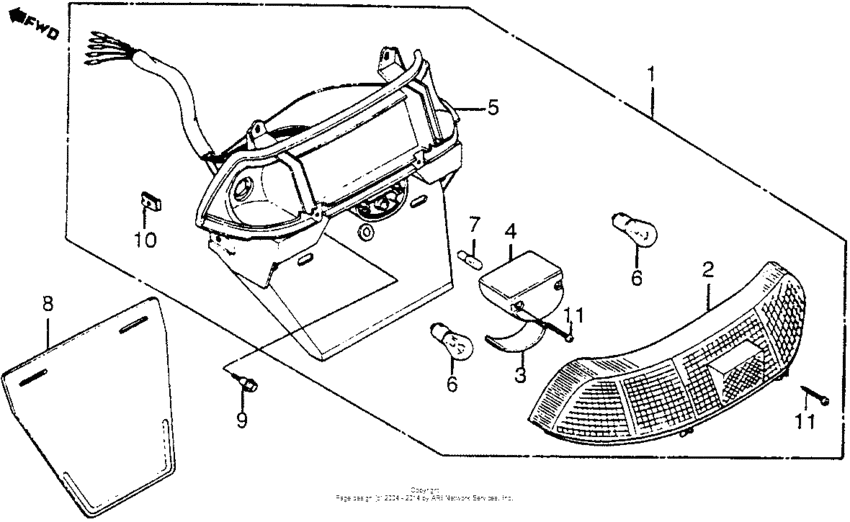

Rear combination light Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33700-GN3-671
Light assy., rr.
|
33700-GN3-671 |
— | ||
|
2
|
2
33702-GN3-671
Lens comp.,winker
|
33702-GN3-671 |
— | ||
|
3
|
3
33705-GN3-671 Lens,license |
33705-GN3-671 |
from US $8.32 |
||
|
4
|
4
33706-GN3-671 Cover,license |
33706-GN3-671 |
from US $9.03 |
||
|
5
|
5
33710-GN3-671
Base, turn signal
|
33710-GN3-671 |
— | ||
|
6
|
6
34905-268-671 Bulb (12v23w32cp) |
34905-268-671 |
from US $3.26 |
||
|
7
|
7
37237-SA5-003 Bulb14V 3.4W) (NS |
37237-SA5-003 |
from US $2.15 |
||
|
8
|
8
80115-GN3-670
Splash guard
|
80115-GN3-670 |
— | ||
|
9
|
9
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
10
|
10
90344-692-003 NutCLIP, 6MM |
90344-692-003 |
from US $2.38 |
||
|
11
|
11
93901-34520 ScrewTAPPING, 4X20 |
93901-34520 |
from US $0.37 |
