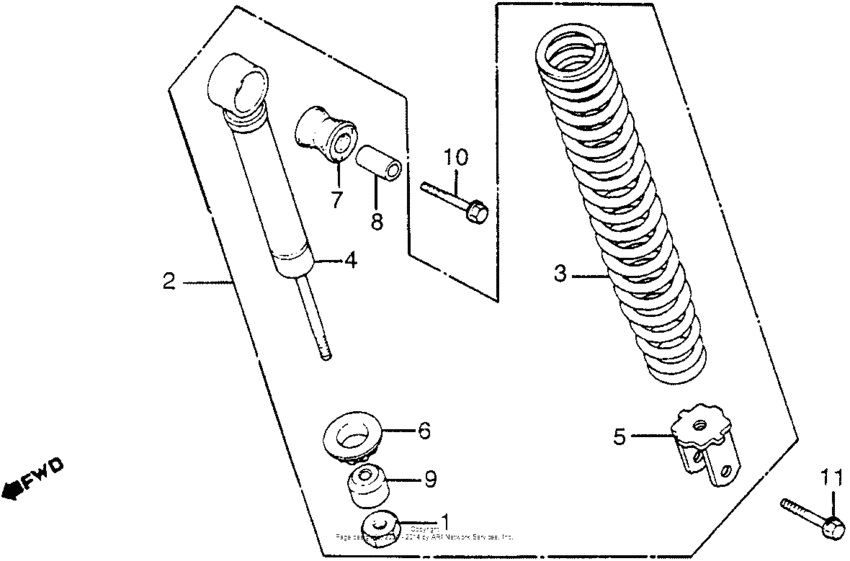

Rear shock absorber Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51413-GB4-003 Nut,lock,8mm |
51413-GB4-003 |
from US $2.66 |
||
|
2
|
2
52400-GN3-701
Cushion assy., rr.
|
52400-GN3-701 |
— | ||
|
3
|
3
52401-GN3-671
Spring, rr. shock
|
52401-GN3-671 |
— | ||
|
4
|
4
52410-GN3-671 Damper comp.,rr. |
52410-GN3-671 |
US $68.99 |
||
|
5
|
5
52420-GE8-681
Joint,rr.cush bot
|
52420-GE8-681 |
— | ||
|
6
|
6
52462-GE8-003 Guide,spring |
52462-GE8-003 |
US $10.42 |
||
|
7
|
7
52485-KR3-003 Bush, rr. shock |
52485-KR3-003 |
from US $6.36 |
||
|
8
|
8
52486-GA7-003 Collar, rubber bush |
52486-GA7-003 |
from US $2.57 |
||
|
9
|
9
52517-178-003 Rubber,stopper |
52517-178-003 |
from US $2.89 |
||
|
10
|
10
95801-1004000 Bolt, flange (10x40) |
95801-1004000 |
from US $0.86 |
||
|
11
|
11
95701-0803200 Bolt, flange, 8x32 |
95701-0803200 |
from US $0.74 |
