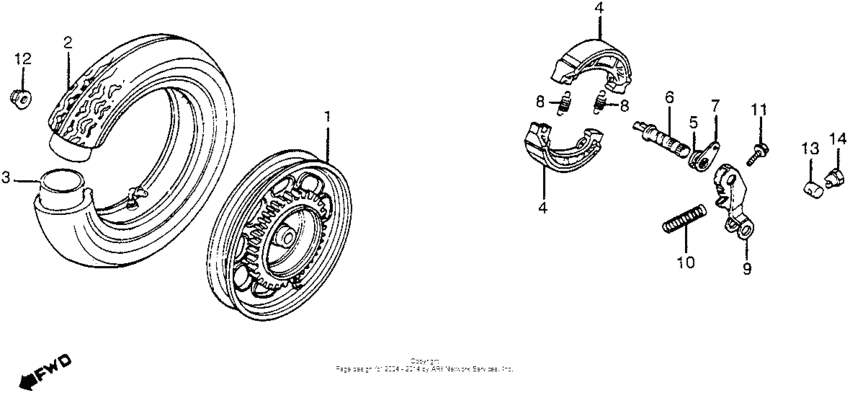

Rear wheel Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42650-GN3-670ZA
Wheel, rr. *nh35m*
|
42650-GN3-670ZA |
— | ||
|
2
|
2
42711-GC8-671
Tire
|
42711-GC8-671 |
— | ||
|
2
|
2
42711-GC8-672
Tire
|
42711-GC8-672 |
— | ||
|
2
|
2
42711-GC8-673 Tire |
42711-GC8-673 |
US $86.73 |
||
|
3
|
3
42712-098-691 Tube,wheel |
42712-098-691 |
US $26.11 |
||
|
3
|
3
42712-GC8-005 Tube, tire (3.50-10) |
42712-GC8-005 |
US $13.01 |
||
|
4
|
4
06450-KJ2-305 Shoe set, brake |
06450-KJ2-305 |
US $26.11 |
||
|
5
|
5
43134-196-000 Seal, brake cam |
43134-196-000 |
from US $1.78 |
||
|
6
|
6
43141-GN2-000
Cam,rr brk
|
43141-GN2-000 |
— | ||
|
7
|
7
43145-196-000 Indicator,r.brk. |
43145-196-000 |
US $6.51 |
||
|
8
|
8
43151-GC4-000 Spring, brake shoe |
43151-GC4-000 |
from US $3.63 |
||
|
9
|
9
43410-GA7-010
Arm, rr. brake
|
43410-GA7-010 |
— | ||
|
10
|
10
43472-KG8-000 Spring, rr. |
43472-KG8-000 |
from US $2.29 |
||
|
10
|
10
43472-161-000 Spg,rr.brake arm |
43472-161-000 |
from US $3.73 |
||
|
11
|
11
90112-187-010 Bolt, flange, 5x25 |
90112-187-010 |
from US $2.29 |
||
|
12
|
12
90305-GE8-003 Nut, u (14mm) |
90305-GE8-003 |
from US $4.29 |
||
|
13
|
13
95015-31001 Joint aBRAKE ARM |
95015-31001 |
from US $0.74 |
||
|
14
|
14
9501541000 Nut a, brake rod adjusting |
9501541000 |
from US $0.81 |
