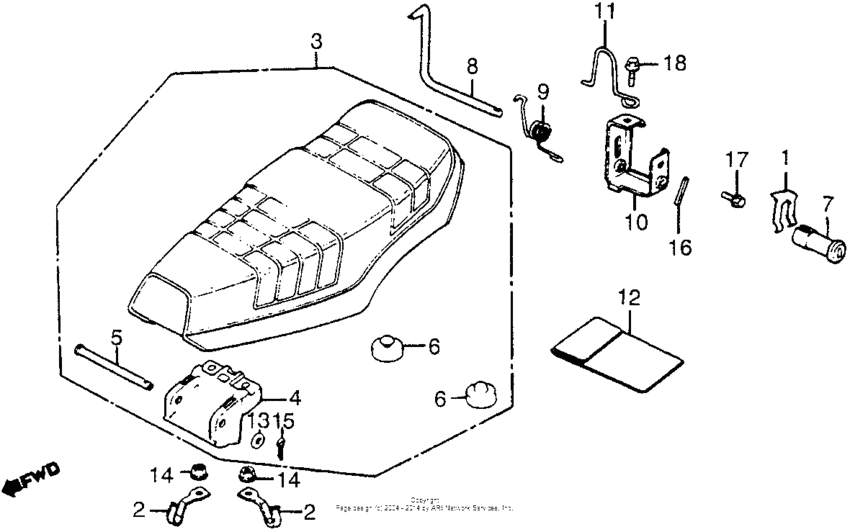

Seat Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75581-673-000 SpringLOCK KEY SETTING |
75581-673-000 |
from US $2.60 |
||
|
2
|
2
77106-GN3-670
Hook, helmet
|
77106-GN3-670 |
— | ||
|
3
|
3
77200-GN3-010ZB
Seat assy., double
|
77200-GN3-010ZB |
— | ||
|
4
|
4
77201-GJ8-000
Hinge, seat
|
77201-GJ8-000 |
— | ||
|
5
|
5
77203-GJ8-000
Pin, seat hinge
|
77203-GJ8-000 |
— | ||
|
6
|
6
77211-GC8-000
Rubber,seat set
|
77211-GC8-000 |
— | ||
|
7
|
7
77230-GE0-003 Lock assy., seat |
77230-GE0-003 |
from US $22.58 |
||
|
8
|
8
77231-GM9-000
Catch, seat
|
77231-GM9-000 |
— | ||
|
9
|
9
77232-GJ8-000 Spring, seat catch |
77232-GJ8-000 |
US $2.91 |
||
|
10
|
10
77235-GM9-000 Bracket, seat catch |
77235-GM9-000 |
US $10.18 |
||
|
11
|
11
77237-GM9-000
Guide, seat catch
|
77237-GM9-000 |
— | ||
|
12
|
12
77251-342-000 Bag, service book |
77251-342-000 |
from US $4.44 |
||
|
13
|
13
90755-693-620
Washer
|
90755-693-620 |
— | ||
|
14
|
14
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
15
|
15
94201-10120 Pin, split, 1.0x12 |
94201-10120 |
from US $0.37 |
||
|
16
|
16
94305-25251 PinSPRING, 2X18 |
94305-25251 |
US $0.81 |
||
|
17
|
17
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
18
|
18
95701-0601407 Bolt, flange, 6x14 |
95701-0601407 |
from US $0.52 |
