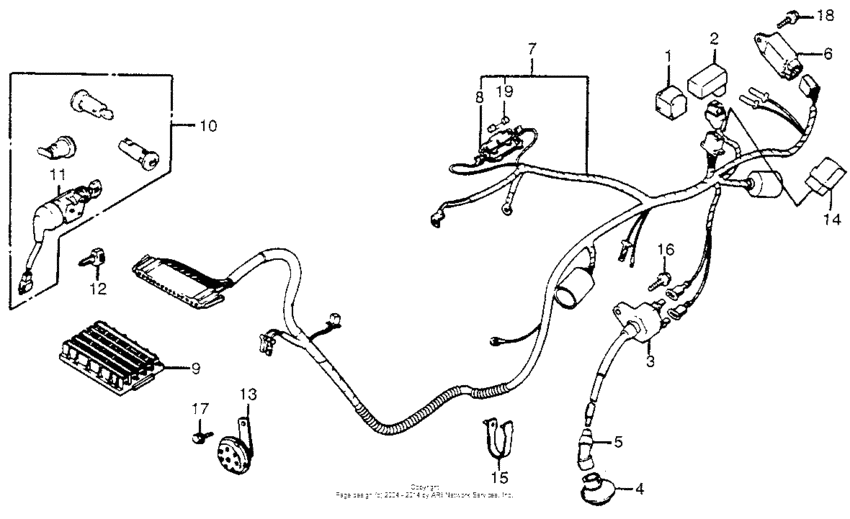

Wire harness + rectifier + key set Diagram Honda NH80 Aero
- Year
- 1985
- Model code
- NH80 A
- Sales region
- USA
- Frame
- JH2HF010*FK200012 -
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30406-471-000 Suspension |
30406-471-000 |
from US $4.88 |
||
|
2
|
2
30410-187-008
C.d.i. unit
|
30410-187-008 |
— | ||
|
3
|
3
30510-GR2-405 Coil, ignition |
30510-GR2-405 |
from US $66.37 |
||
|
4
|
4
30605-GR1-010 Seal,hightension( |
30605-GR1-010 |
US $8.14 |
||
|
5
|
5
30600-GN0-315
Cap set noise sup
|
30600-GN0-315 |
— | ||
|
6
|
6
31600-GW0-004 Rectifier, regulator |
31600-GW0-004 |
from US $93.16 |
||
|
7
|
7
32100-GN3-670
Wire harness
|
32100-GN3-670 |
— | ||
|
8
|
8
32120-383-830 Case,10a fuse |
32120-383-830 |
from US $5.56 |
||
|
9
|
9
32150-GJ2-003 Multi-coupler. |
32150-GJ2-003 |
US $18.36 |
||
|
10
|
10
35010-GM9-010
Key set
|
35010-GM9-010 |
— | ||
|
11
|
11
35100-GY1-860 Sw.assy.,comb.& l |
35100-GY1-860 |
US $58.70 |
||
|
12
|
12
35121-MR1-770 Key, blank (type1)(Optional). |
35121-MR1-770 |
from US $10.21 |
||
|
12
|
12
35122-MR1-770 Key, blank (type2)(Optional). |
35122-MR1-770 |
from US $10.21 |
||
|
13
|
13
38110-GM9-014
Horn
|
38110-GM9-014 |
— | ||
|
14
|
14
38501-GN2-014 Relay, starter |
38501-GN2-014 |
from US $21.76 |
||
|
15
|
15
90668-GA7-003
Strap c,cable
Use up to Frame SN FK200999 |
90668-GA7-003 |
— | ||
|
15
|
15
90669-671-003 Strap bCABLE, 125MM (BLUE) Use from Frame SN FK201000 |
90669-671-003 |
US $4.61 |
||
|
16
|
16
92101-05020-0A Bolt, hex., 5x20 |
92101-05020-0A |
from US $0.38 |
||
|
17
|
17
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
18
|
18
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
19
|
19
9820011000 Fuse a (10a) |
9820011000 |
from US $0.59 |
