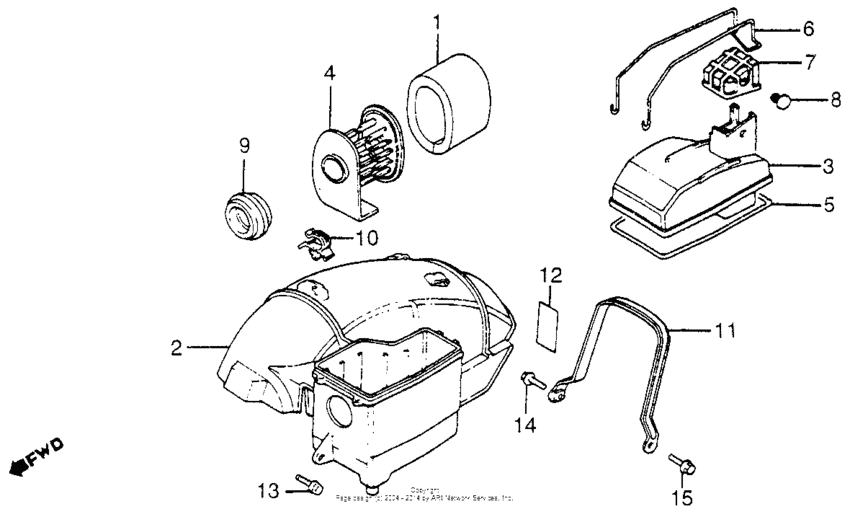

Air cleaner Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17205-GC8-000 Element,air clean |
17205-GC8-000 |
from US $6.36 |
||
|
2
|
2
17206-GC8-010
Case,air/c
|
17206-GC8-010 |
— | ||
|
3
|
3
17207-GC8-000
Cover,air/c case
|
17207-GC8-000 |
— | ||
|
4
|
4
17208-GC8-030
Holder,air/c elem
|
17208-GC8-030 |
— | ||
|
5
|
5
17222-MN4-405 Seal |
17222-MN4-405 |
from US $6.51 |
||
|
6
|
6
17223-GC8-000
Spg,air/c case
|
17223-GC8-000 |
— | ||
|
7
|
7
17241-GC8-000
Duct,air/c case
|
17241-GC8-000 |
— | ||
|
8
|
8
17242-GC8-000 Fastener,duct |
17242-GC8-000 |
US $1.57 |
||
|
9
|
9
17253-GC8-020
Tube,air/c conn.
|
17253-GC8-020 |
— | ||
|
10
|
10
32161-393-003 Clip, wire harness |
32161-393-003 |
from US $3.92 |
||
|
11
|
11
80106-GC8-000
Stay,rr.fender
|
80106-GC8-000 |
— | ||
|
12
|
12
87508-120-000 Label |
87508-120-000 |
from US $8.14 |
||
|
13
|
13
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
14
|
14
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
15
|
15
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
