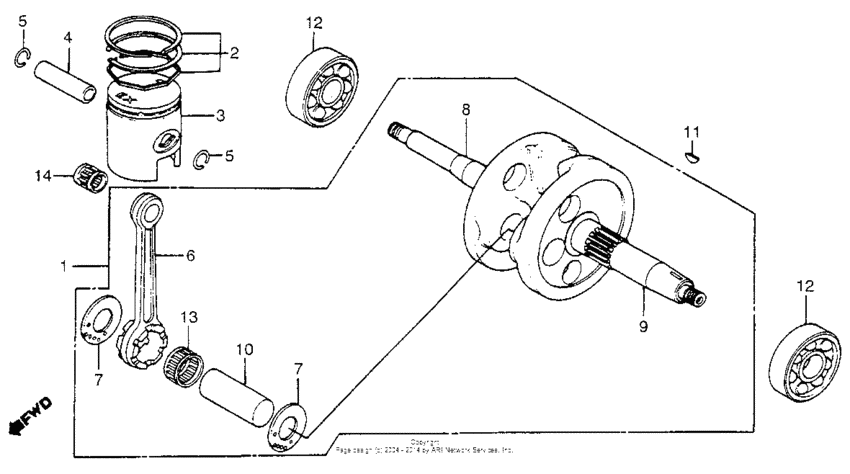

Crankshaft + piston Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-GC8-020
Crankshaft
|
13000-GC8-020 |
— | ||
|
2
|
2
13010-GC8-305
Ring set, piston (std)
|
13010-GC8-305 |
— | ||
|
3
|
3
13101-GC8-000
Piston
|
13101-GC8-000 |
— | ||
|
4
|
4
13111-GC8-000 Pin,piston |
13111-GC8-000 |
US $8.88 |
||
|
5
|
5
13115-156-000 Clip (12mm) |
13115-156-000 |
from US $2.25 |
||
|
6
|
6
13201-GC8-310
Rod, connecting
|
13201-GC8-310 |
— | ||
|
7
|
7
13202-GT4-691 Plate con-rod sid |
13202-GT4-691 |
from US $6.07 |
||
|
8
|
8
13311-GC8-310
Crankshaft, r.
|
13311-GC8-310 |
— | ||
|
9
|
9
13321-GC8-310
Crankshaft, l
|
13321-GC8-310 |
— | ||
|
10
|
10
13381-GC8-300
Pin,crank
|
13381-GC8-300 |
— | ||
|
11
|
11
90701-HB6-010 Key (25x14x4) |
90701-HB6-010 |
from US $2.87 |
||
|
12
|
12
91005-GF9-003
Bearing, radial ball
|
91005-GF9-003 |
— | ||
|
13
|
13
91001-166-004 Needle brg |
91001-166-004 |
from US $9.24 |
||
|
13
|
13
91002-166-004
Needle brg
|
91002-166-004 |
— | ||
|
13
|
13
91003-166-004
Needle brg
|
91003-166-004 |
— | ||
|
14
|
14
91102-GC8-004 Bearing |
91102-GC8-004 |
from US $14.14 |
