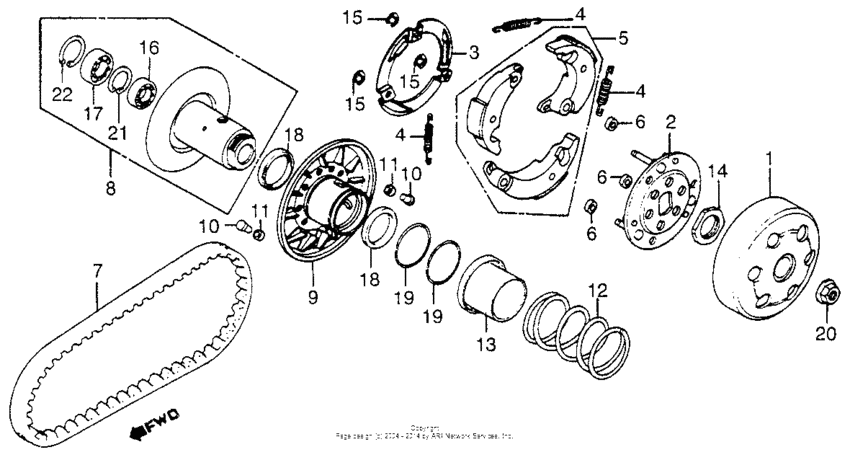

Driven face Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22101-GC8-010
Clutch outer
|
22101-GC8-010 |
— | ||
|
2
|
2
22350-GC8-000
Plate comp,drive
|
22350-GC8-000 |
— | ||
|
3
|
3
22361-GC7-000
Pl,clutch side
|
22361-GC7-000 |
— | ||
|
4
|
4
22401-GC8-000 Spring,clutch |
22401-GC8-000 |
US $5.56 |
||
|
5
|
5
22300-KBN-305 Plate set, drive |
22300-KBN-305 |
from US $57.60 |
||
|
6
|
6
22804-148-000 Rubber, clutch damper |
22804-148-000 |
from US $2.25 |
||
|
7
|
7
23100-GC8-004
Belt,drive
|
23100-GC8-004 |
— | ||
|
8
|
8
23205-GC8-305
Face set,driven
|
23205-GC8-305 |
— | ||
|
9
|
9
23220-GC8-000
Face,movabl drive
|
23220-GC8-000 |
— | ||
|
10
|
10
23225-GC8-003 Pin,roller guide |
23225-GC8-003 |
US $2.66 |
||
|
11
|
11
23226-GC8-003 Roller,guide |
23226-GC8-003 |
from US $2.07 |
||
|
12
|
12
23233-GC8-000
Spg,driven face
|
23233-GC8-000 |
— | ||
|
13
|
13
23237-GA7-700 Collar,seal |
23237-GA7-700 |
US $11.99 |
||
|
14
|
14
90202-187-000 Nut, special (28mm) |
90202-187-000 |
from US $5.18 |
||
|
15
|
15
90605-166-720 Circlip, 7mm |
90605-166-720 |
from US $1.22 |
||
|
16
|
16
91001-GA7-701 Bearing (6901u) |
91001-GA7-701 |
from US $8.70 |
||
|
17
|
17
91002-GA7-701 Bearing (6902u) |
91002-GA7-701 |
from US $10.66 |
||
|
18
|
18
91211-187-003 Seal, driven face |
91211-187-003 |
from US $5.92 |
||
|
19
|
19
91351-642-000 O-ring (36.7x1.9) |
91351-642-000 |
from US $2.96 |
||
|
20
|
20
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
21
|
21
9452024000 Circlip (24mm) |
9452024000 |
from US $0.59 |
||
|
22
|
22
94520-28000 CirclipINTERNAL, 28MM |
94520-28000 |
from US $0.81 |
