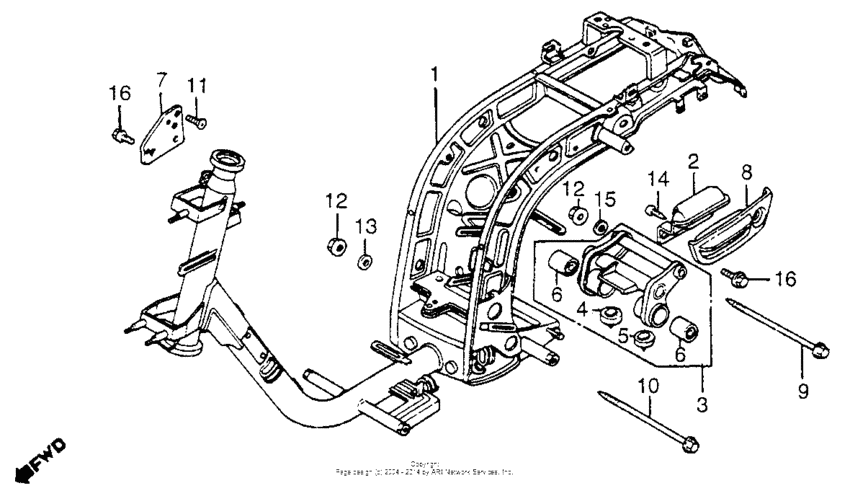

Frame Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50100-GC8-650ZA Frame,body*nh-1* |
50100-GC8-650ZA |
US $650.51 |
||
|
2
|
2
50316-GC8-000
Grip,side
|
50316-GC8-000 |
— | ||
|
3
|
3
50350-GC8-000
Brkt,eng.hanger
|
50350-GC8-000 |
— | ||
|
4
|
4
50352-GC8-000 Rubber,stopper |
50352-GC8-000 |
US $3.11 |
||
|
5
|
5
50352-196-000 Rubber,stopper |
50352-196-000 |
from US $3.26 |
||
|
6
|
6
50353-GC8-000
Bush,rub.eng hang
|
50353-GC8-000 |
— | ||
|
7
|
7
53128-GC8-010
Stay b hndl lock
|
53128-GC8-010 |
— | ||
|
8
|
8
80153-GC8-000ZA
Cover,grip*nh-122
|
80153-GC8-000ZA |
— | ||
|
9
|
9
90103-GC8-000 Bolt flange 10x19 |
90103-GC8-000 |
US $8.73 |
||
|
10
|
10
90104-GC8-000
Bolt flange 10x17
|
90104-GC8-000 |
— | ||
|
11
|
11
90164-028-000 Screw (6x12) |
90164-028-000 |
from US $1.92 |
||
|
12
|
12
90304-GA6-003 Nut, axle, 10mm |
90304-GA6-003 |
from US $2.96 |
||
|
13
|
13
90516-187-000
Wash,plain 10x24
|
90516-187-000 |
— | ||
|
14
|
14
93904-24320 Screw,tap.,4x12 |
93904-24320 |
from US $0.35 |
||
|
15
|
15
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
16
|
16
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
