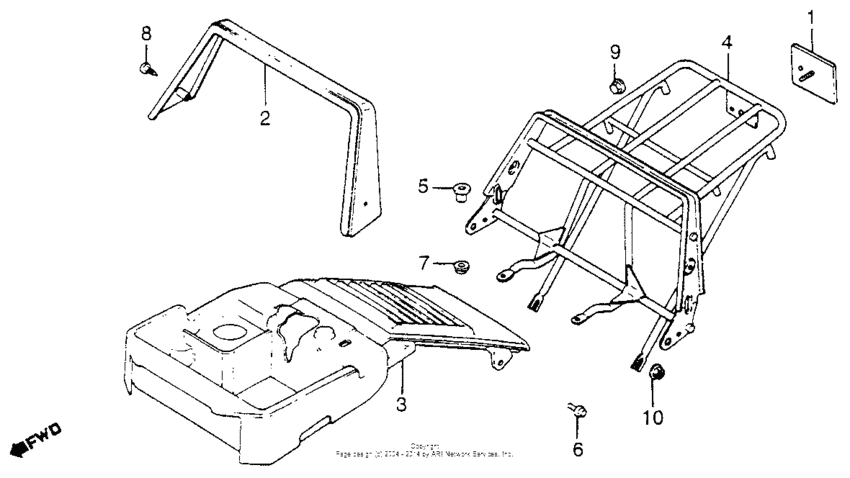

Frame rear cover + luggage carrier Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-GC8-601
Reflector, rr.
|
33741-GC8-601 |
— | ||
|
2
|
2
77320-GC8-720
Cover.grab rail
|
77320-GC8-720 |
— | ||
|
3
|
3
80101-GC8-720ZD
Cov fra rr*r-4c*
|
80101-GC8-720ZD |
— | ||
|
3
|
3
80101-GC8-720ZF
Cover, rr. *nh137m*
|
80101-GC8-720ZF |
— | ||
|
4
|
4
81200-GC8-770
Carrier, luggage
|
81200-GC8-770 |
— | ||
|
5
|
5
90135-GC2-000
Nut,special,6mm
|
90135-GC2-000 |
— | ||
|
6
|
6
90508-GC8-000 BoltFLANGE, 5X9 |
90508-GC8-000 |
from US $2.59 |
||
|
7
|
7
90522-028-000 Washer, chain case setting |
90522-028-000 |
from US $1.92 |
||
|
8
|
8
93903-24380 ScrewTAPPING, 4X12 |
93903-24380 |
from US $0.37 |
||
|
9
|
9
94021-060-700-S NutCAP, 6MM |
94021-060-700-S |
from US $0.59 |
||
|
10
|
10
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
