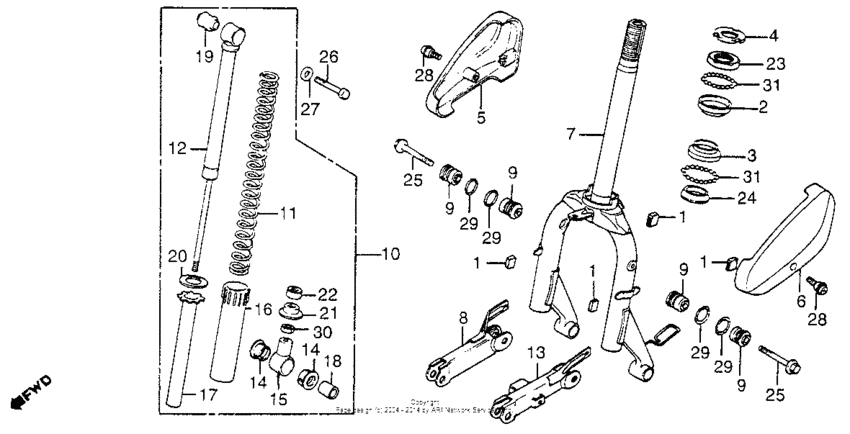

Front fork Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31503-044-670 Rubber b |
31503-044-670 |
from US $2.22 |
||
|
2
|
2
50301-GM0-000 Race, steering upper ball |
50301-GM0-000 |
from US $7.55 |
||
|
3
|
3
50305-GC8-003 Race, steering ball |
50305-GC8-003 |
from US $7.40 |
||
|
4
|
4
50306-147-003
Nut
|
50306-147-003 |
— | ||
|
5
|
5
51103-GC8-000
Cover,r.pivot arm
|
51103-GC8-000 |
— | ||
|
6
|
6
51104-GC8-000
Cover,l.pivot arm
|
51104-GC8-000 |
— | ||
|
7
|
7
51110-GC8-305ZA
Fork, fr. *nh1*
|
51110-GC8-305ZA |
— | ||
|
8
|
8
51311-GC8-000ZA Arm, r. fr. *nh1* |
51311-GC8-000ZA |
from US $26.75 |
||
|
9
|
9
51314-GR1-003
Bush, pivot arm
|
51314-GR1-003 |
— | ||
|
10
|
10
51400-GC8-701
Fork assy., fr.
|
51400-GC8-701 |
— | ||
|
11
|
11
51401-GC8-003
Spg,fr.cushion
|
51401-GC8-003 |
— | ||
|
12
|
12
51410-GC8-672
Damper comp., fr.
|
51410-GC8-672 |
— | ||
|
13
|
13
51411-GC8-000ZA Arm, l. fr. *nh1* |
51411-GC8-000ZA |
from US $28.72 |
||
|
14
|
14
51413-GC8-701
Bush,fr cush un
|
51413-GC8-701 |
— | ||
|
15
|
15
51414-GC8-701
Metal comp bot
|
51414-GC8-701 |
— | ||
|
16
|
16
51421-GC8-003 Case,fr.cush.und |
51421-GC8-003 |
from US $9.55 |
||
|
17
|
17
51458-GC8-003 Guide,fr.cushion |
51458-GC8-003 |
from US $5.10 |
||
|
18
|
18
51486-GC8-003 Collar, rubber bush |
51486-GC8-003 |
from US $2.96 |
||
|
19
|
19
51489-GC8-003
Bush,damper
|
51489-GC8-003 |
— | ||
|
20
|
20
51515-196-003 Seat,spg.upper |
51515-196-003 |
US $4.74 |
||
|
21
|
21
51516-GC8-003 Seat,spring |
51516-GC8-003 |
from US $3.85 |
||
|
22
|
22
52475-GC6-000 Rub,stopper |
52475-GC6-000 |
US $2.29 |
||
|
23
|
23
53211-GC8-003 Race, steering top cone |
53211-GC8-003 |
from US $7.70 |
||
|
24
|
24
53212-GC8-003 Race, steering cone |
53212-GC8-003 |
from US $4.44 |
||
|
25
|
25
90111-GC3-000 Bolt, flange, 8x48 |
90111-GC3-000 |
from US $3.63 |
||
|
26
|
26
90121-GC8-000 Bolt, hex. (8x32) |
90121-GC8-000 |
from US $3.56 |
||
|
27
|
27
90443-GC8-000 Washer, special, 8mm |
90443-GC8-000 |
from US $2.59 |
||
|
28
|
28
90508-GC8-000 BoltFLANGE, 5X9 |
90508-GC8-000 |
from US $2.59 |
||
|
29
|
29
91347-PY3-000 O-ring16.8X1.9 |
91347-PY3-000 |
from US $1.67 |
||
|
30
|
30
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
31
|
31
9621105000 Ball, steel, #5 (5/32) |
9621105000 |
from US $0.15 |
