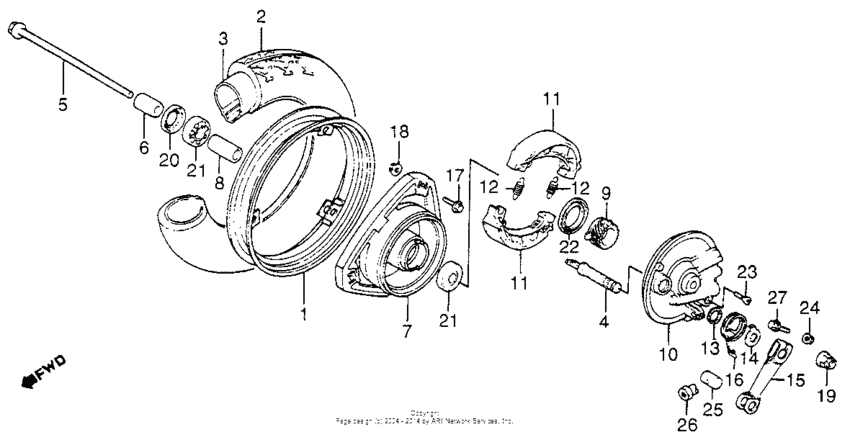

Front wheel Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42701-GE1-741
Rim,wheel
|
42701-GE1-741 |
— | ||
|
2
|
2
42711-GC8-671
Tire
|
42711-GC8-671 |
— | ||
|
2
|
2
42711-GC8-672
Tire
|
42711-GC8-672 |
— | ||
|
2
|
2
42711-GC8-673 Tire |
42711-GC8-673 |
US $86.73 |
||
|
3
|
3
42712-098-691 Tube,wheel |
42712-098-691 |
US $26.11 |
||
|
3
|
3
42712-GC8-005 Tube, tire (3.50-10) |
42712-GC8-005 |
US $13.01 |
||
|
4
|
4
43141-400-010 Cam, rr. brake |
43141-400-010 |
from US $14.80 |
||
|
5
|
5
44301-GC8-000 Axle, fr. wheel |
44301-GC8-000 |
from US $13.52 |
||
|
6
|
6
44311-GC8-000 Colr, fr. wheel side |
44311-GC8-000 |
from US $8.16 |
||
|
7
|
7
44601-GC8-000
Hub comp,fr.wheel
|
44601-GC8-000 |
— | ||
|
8
|
8
44620-GC8-000 Collar, fr |
44620-GC8-000 |
from US $4.23 |
||
|
9
|
9
44806-GC8-003
Gear, speedometer
|
44806-GC8-003 |
— | ||
|
10
|
10
45010-GC8-305ZA
Panel fr *nh-35m*
|
45010-GC8-305ZA |
— | ||
|
11
|
11
06450-178-932 Shoe set, brake |
06450-178-932 |
from US $33.07 |
||
|
11
|
11
45120-096-652 *451a2-096-305 |
45120-096-652 |
US $7.48 |
||
|
12
|
12
45133-028-000 Spring, brake shoe |
45133-028-000 |
from US $2.15 |
||
|
13
|
13
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
14
|
14
45145-121-710 Indicator, fr. brake |
45145-121-710 |
from US $3.70 |
||
|
15
|
15
45410-121-710
Arm,fr.brake
|
45410-121-710 |
— | ||
|
16
|
16
45435-121-010 Spring, fr |
45435-121-010 |
from US $2.70 |
||
|
17
|
17
90105-GAZ-000
Bolt,flange 8x32
|
90105-GAZ-000 |
— | ||
|
18
|
18
90208-425-870 Nut, flange, 8mm |
90208-425-870 |
from US $2.89 |
||
|
19
|
19
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.26 |
||
|
20
|
20
90754-GC8-005 Dust seal (20x32x5) |
90754-GC8-005 |
from US $4.29 |
||
|
21
|
21
90912-GC8-003 Bearing (6201u)Use up to Frame SN ES108121 |
90912-GC8-003 |
from US $9.18 |
||
|
21
|
21
90912-GC8-005 B/brg,rad,n/com.Use up to Frame SN ES108121 |
90912-GC8-005 |
from US $9.18 |
||
|
21
|
21
90912-GE1-003
B/brg rad n/com
Use from Frame SN ES102697 |
90912-GE1-003 |
— | ||
|
22
|
22
91251-GE1-003
Oil seal 41x51x5
|
91251-GE1-003 |
— | ||
|
23
|
23
93700-050180A Screw, oval (5x18) |
93700-050180A |
from US $0.37 |
||
|
24
|
24
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
25
|
25
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
26
|
26
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
27
|
27
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
27
|
27
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
27
|
27
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
