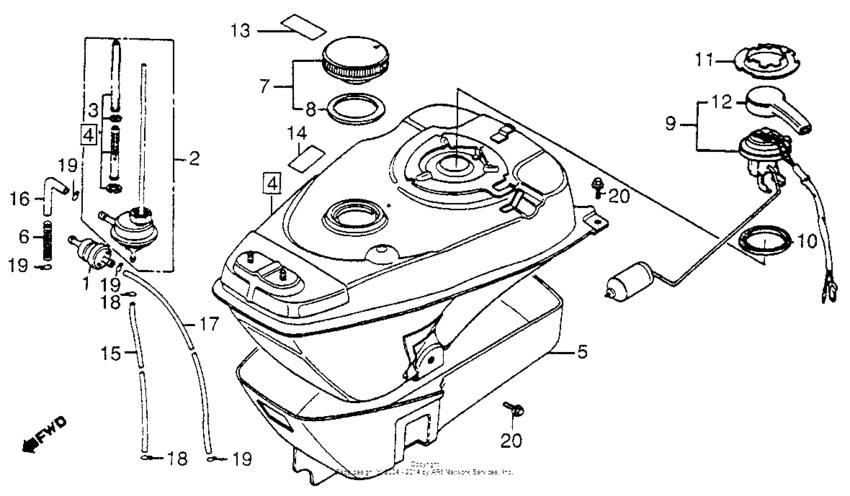

Fuel tank Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16910-GB2-900 Filter, fuel |
16910-GB2-900 |
US $12.88 |
||
|
1
|
1
16910-GB2-005 Strainer comp., fuel |
16910-GB2-005 |
from US $8.19 |
||
|
2
|
2
16950-GC8-721
Auto cock fuel
|
16950-GC8-721 |
— | ||
|
3
|
3
16952-GF0-005
Screen set,strain
|
16952-GF0-005 |
— | ||
|
4
|
4
175A1-GC8-671
Tank set,fuel
|
175A1-GC8-671 |
— | ||
|
5
|
5
17505-GC8-000
Protector,f/tank.
|
17505-GC8-000 |
— | ||
|
6
|
6
17532-GC8-000
Spg,fuel.tube cor
|
17532-GC8-000 |
— | ||
|
7
|
7
17620-GE7-023 Cap, fuel fillerUse up to Frame SN ES113476 |
17620-GE7-023 |
from US $33.59 |
||
|
8
|
8
17631-096-701
Gasket
|
17631-096-701 |
— | ||
| replacement | |||||
|
8
|
8
17631-096-702 Gasket |
17631-096-702 |
from US $3.98 |
||
|
9
|
9
37800-GC8-008
Fuel unit
|
37800-GC8-008 |
— | ||
|
10
|
10
37801-GA7-700 Packing, base |
37801-GA7-700 |
from US $4.07 |
||
|
11
|
11
37802-GA7-700 Retainer, fuel unit |
37802-GA7-700 |
from US $5.03 |
||
|
11
|
11
37802-GK8-670
Ret.,fuel unit
|
37802-GK8-670 |
— | ||
|
12
|
12
37805-KG8-000 Cov,fuel unit |
37805-KG8-000 |
US $4.88 |
||
|
13
|
13
87512-GC8-670
Label, fuel
|
87512-GC8-670 |
— | ||
|
15
|
15
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
16
|
16
95001-450-0360M Bulk hose (4.5x3000) |
95001-450-0360M |
from US $17.68 |
||
|
17
|
17
95001-450-0360M Bulk hose (4.5x3000) |
95001-450-0360M |
from US $17.68 |
||
|
18
|
18
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
19
|
19
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
20
|
20
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
