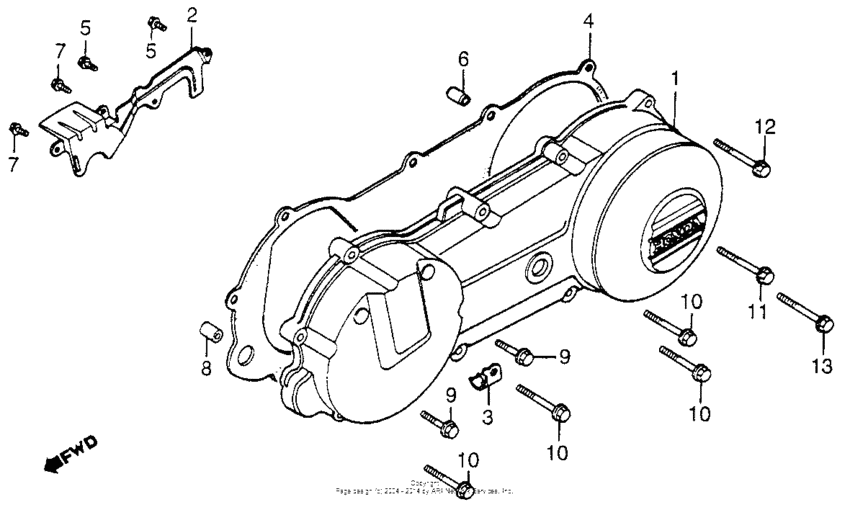

Left side cover Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-GC8-010
Cover, l. side
|
11341-GC8-010 |
— | ||
|
2
|
2
11345-GC8-010
Plate, drive face
|
11345-GC8-010 |
— | ||
|
3
|
3
11351-GC8-000
Clip, overflow tube
|
11351-GC8-000 |
— | ||
|
4
|
4
11395-GY1-610
Gasket, l
|
11395-GY1-610 |
— | ||
|
5
|
5
90019-883-000 Bolt, flange, 5x10 |
90019-883-000 |
US $3.81 |
||
|
6
|
6
90801-GC8-000
Knock pin,special
|
90801-GC8-000 |
— | ||
|
7
|
7
93500-060-080-H ScrewPAN, 6X8 |
93500-060-080-H |
from US $0.44 |
||
|
7
|
7
93500-060080A Screw, pan, 6x8 |
93500-060080A |
from US $0.44 |
||
|
8
|
8
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
9
|
9
96000-0602500 Bolt, flange, 6x25 |
96000-0602500 |
US $24.50 |
||
| replacement | |||||
|
9
|
9
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
9
|
9
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
10
|
10
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
|
11
|
11
96001-060-450-0 Bolt, flange (6x45) |
96001-060-450-0 |
from US $0.81 |
||
|
12
|
12
96001-0605000 Bolt, flange (6x50) |
96001-0605000 |
from US $0.81 |
||
|
13
|
13
96001-0607000 Bolt, flange (6x70) |
96001-0607000 |
from US $0.89 |
||
