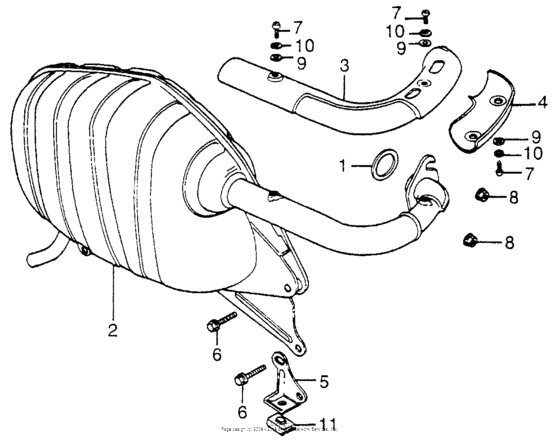

Muffler Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-GE2-920 Gasket,ex.pipe |
18291-GE2-920 |
from US $6.36 |
||
|
2
|
2
18300-GC8-406
Muffler, ex.
|
18300-GC8-406 |
— | ||
|
3
|
3
18325-GC8-003 Protector,ex.pipe |
18325-GC8-003 |
US $23.10 |
||
|
4
|
4
18326-GC8-710
Protr b ex pipe
|
18326-GC8-710 |
— | ||
|
5
|
5
50504-GC8-000
Stay,main stand
|
50504-GC8-000 |
— | ||
|
6
|
6
90111-GC8-720 Bolt flange 8x30 |
90111-GC8-720 |
US $3.77 |
||
|
7
|
7
93500-060080G Screw, pan, 6x8 |
93500-060080G |
from US $0.47 |
||
|
7
|
7
93500-060-081-G ScrewPAN, 6X8 |
93500-060-081-G |
from US $0.44 |
||
| replacement | |||||
|
7
|
7
93500-060080G Screw, pan, 6x8 |
93500-060080G |
from US $0.47 |
||
|
8
|
8
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
9
|
9
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
10
|
10
94111-06700 WasherSPRING, 6MM |
94111-06700 |
from US $0.37 |
||
|
11
|
11
9501161000 Rubber a, stand stopper |
9501161000 |
from US $0.74 |
||
