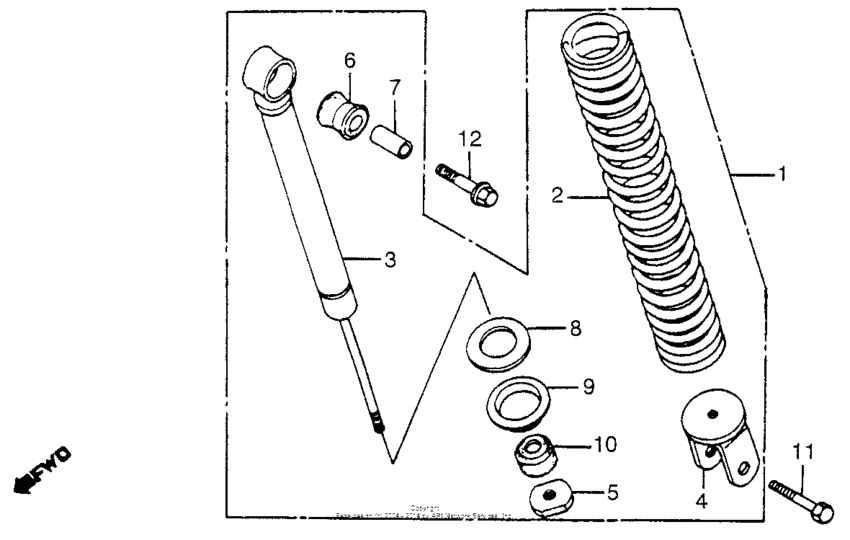

Rear shock absorber Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-GC8-671
Cushion assy rr
|
52400-GC8-671 |
— | ||
|
2
|
2
52401-GC8-612
Spg rr cush
|
52401-GC8-612 |
— | ||
|
3
|
3
52410-GC8-671 Damper comp rr |
52410-GC8-671 |
US $64.20 |
||
|
4
|
4
52420-GE8-681
Joint,rr.cush bot
|
52420-GE8-681 |
— | ||
|
5
|
5
51413-GB4-003 Nut,lock,8mm |
51413-GB4-003 |
from US $2.66 |
||
|
6
|
6
52485-KR3-003 Bush, rr. shock |
52485-KR3-003 |
from US $6.36 |
||
|
7
|
7
52486-GA7-003 Collar, rubber bush |
52486-GA7-003 |
from US $2.57 |
||
|
8
|
8
52515-GC8-003
Seat a,spg.upper
|
52515-GC8-003 |
— | ||
|
9
|
9
52462-GE8-003 Guide,spring |
52462-GE8-003 |
US $10.42 |
||
|
10
|
10
52517-178-003 Rubber,stopper |
52517-178-003 |
from US $2.89 |
||
|
11
|
11
93201-080-320-A
Bolt hex 8x32
|
93201-080-320-A |
— | ||
|
12
|
12
95801-1004000 Bolt, flange (10x40) |
95801-1004000 |
from US $0.86 |
