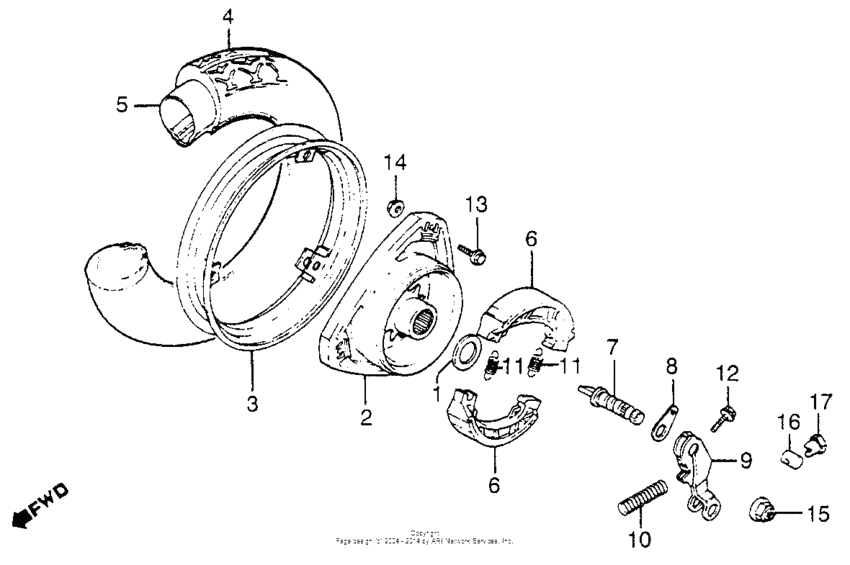

Rear wheel Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42311-GA7-000
Collar,rr,wheel
|
42311-GA7-000 |
— | ||
|
2
|
2
42601-GC8-020
Hub, rr. wheel
|
42601-GC8-020 |
— | ||
|
3
|
3
42701-GE1-741
Rim,wheel
|
42701-GE1-741 |
— | ||
|
4
|
4
42711-GC8-671
Tire
|
42711-GC8-671 |
— | ||
|
4
|
4
42711-GC8-672
Tire
|
42711-GC8-672 |
— | ||
|
4
|
4
42711-GC8-673 Tire |
42711-GC8-673 |
US $86.73 |
||
|
5
|
5
42712-098-691 Tube,wheel |
42712-098-691 |
US $26.11 |
||
|
5
|
5
42712-GC8-005 Tube, tire (3.50-10) |
42712-GC8-005 |
US $13.01 |
||
|
6
|
6
43120-GE8-003
Shoe comp.,brake
|
43120-GE8-003 |
— | ||
|
7
|
7
43141-GC8-010
Cam, fr. brake
|
43141-GC8-010 |
— | ||
|
8
|
8
43145-GA7-000
Ind,rr.brake
|
43145-GA7-000 |
— | ||
|
9
|
9
43410-GA7-010
Arm, rr. brake
|
43410-GA7-010 |
— | ||
|
10
|
10
43472-KG8-000 Spring, rr. |
43472-KG8-000 |
from US $2.29 |
||
|
10
|
10
43472-161-000 Spg,rr.brake arm |
43472-161-000 |
from US $3.73 |
||
|
11
|
11
45133-028-000 Spring, brake shoe |
45133-028-000 |
from US $2.15 |
||
|
12
|
12
90112-187-010 Bolt, flange, 5x25 |
90112-187-010 |
from US $2.29 |
||
|
13
|
13
90105-GAZ-000
Bolt,flange 8x32
|
90105-GAZ-000 |
— | ||
|
14
|
14
90208-425-870 Nut, flange, 8mm |
90208-425-870 |
from US $2.89 |
||
|
15
|
15
90305-GE8-003 Nut, u (14mm) |
90305-GE8-003 |
from US $4.29 |
||
|
16
|
16
95015-31001 Joint aBRAKE ARM |
95015-31001 |
from US $0.74 |
||
|
17
|
17
9501541000 Nut a, brake rod adjusting |
9501541000 |
from US $0.81 |
