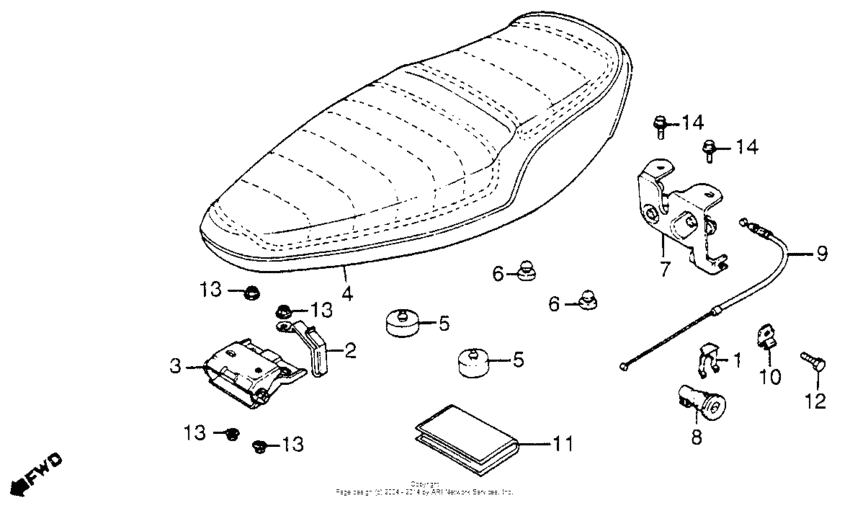

Seat Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75581-673-000 SpringLOCK KEY SETTING |
75581-673-000 |
from US $2.60 |
||
|
2
|
2
77106-GC8-000
Hook,helmet
|
77106-GC8-000 |
— | ||
|
3
|
3
77110-GC8-000 Hinge comp.,seat |
77110-GC8-000 |
from US $14.82 |
||
|
4
|
4
77200-GC8-610ZB
Seat comp,*type2*
|
77200-GC8-610ZB |
— | ||
|
5
|
5
77211-GC8-000
Rubber,seat set
|
77211-GC8-000 |
— | ||
|
6
|
6
77215-GC2-000 Rubber b |
77215-GC2-000 |
from US $3.42 |
||
|
7
|
7
77230-GG2-000 Lock comp,seat |
77230-GG2-000 |
from US $34 |
||
|
8
|
8
77239-196-017 Key, seat lock |
77239-196-017 |
from US $25.57 |
||
|
9
|
9
77240-GC8-000 Cable,seat lock |
77240-GC8-000 |
US $7.62 |
||
|
10
|
10
77241-196-000 Plate a,stay |
77241-196-000 |
US $2.74 |
||
|
11
|
11
77251-342-000 Bag, service book |
77251-342-000 |
from US $4.44 |
||
|
12
|
12
92101-04008-0H Bolt, hex., 4x8 |
92101-04008-0H |
from US $0.37 |
||
|
13
|
13
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
14
|
14
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
