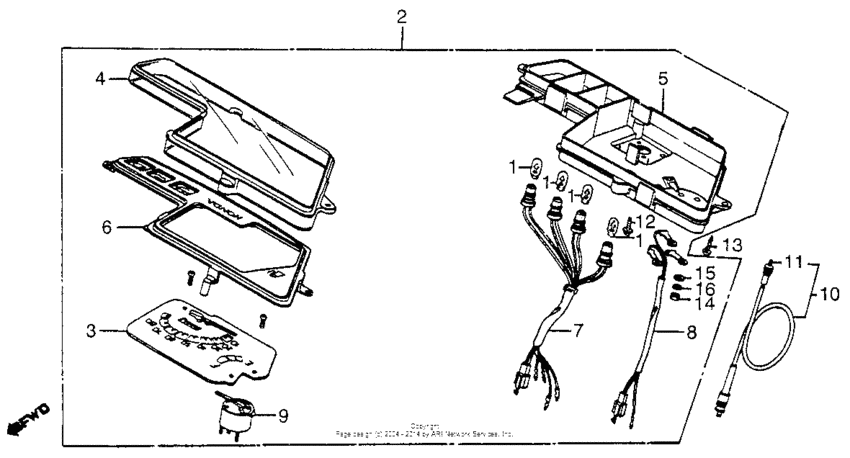

Speedometer Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37237-SA5-003 Bulb14V 3.4W) (NS |
37237-SA5-003 |
from US $2.15 |
||
|
2
|
2
37200-GC8-671
Speedometer assy
|
37200-GC8-671 |
— | ||
|
3
|
3
37210-GC8-601
Speedometer comp
|
37210-GC8-601 |
— | ||
|
4
|
4
37211-GC8-008
Lens,meter
|
37211-GC8-008 |
— | ||
|
5
|
5
37212-GC8-018
Case,meter
|
37212-GC8-018 |
— | ||
|
6
|
6
37213-GC8-671
Pl,reflecting
|
37213-GC8-671 |
— | ||
|
7
|
7
37223-GC8-008
Socket comp.
|
37223-GC8-008 |
— | ||
|
8
|
8
37229-GC8-008
Cord,comp,fuel
|
37229-GC8-008 |
— | ||
|
9
|
9
37300-GC8-008
Meter comp.,fuel
|
37300-GC8-008 |
— | ||
|
10
|
10
44830-GC8-000
Cable, speedometer
|
44830-GC8-000 |
— | ||
|
11
|
11
44831-GC8-000 Cable (inner) |
44831-GC8-000 |
US $8.14 |
||
|
12
|
12
93500-040-080-A ScrewPAN, 4X8 Use up to Frame SN ES110596 |
93500-040-080-A |
from US $0.38 |
||
|
12
|
12
90101-GC8-008 Screw, flange (4x8)Use from Frame SN ES110597 |
90101-GC8-008 |
from US $2.22 |
||
|
13
|
13
93903-25410 ScrewTAPPING, 5X20 |
93903-25410 |
US $0.37 |
||
|
14
|
14
94001-030000S Nut, hex., 3mm |
94001-030000S |
from US $0.37 |
||
|
15
|
15
94103-03000 Washer, plain, 3mm |
94103-03000 |
from US $0.37 |
||
|
16
|
16
94111-03800 WasherSPRING, 3MM |
94111-03800 |
from US $0.37 |
