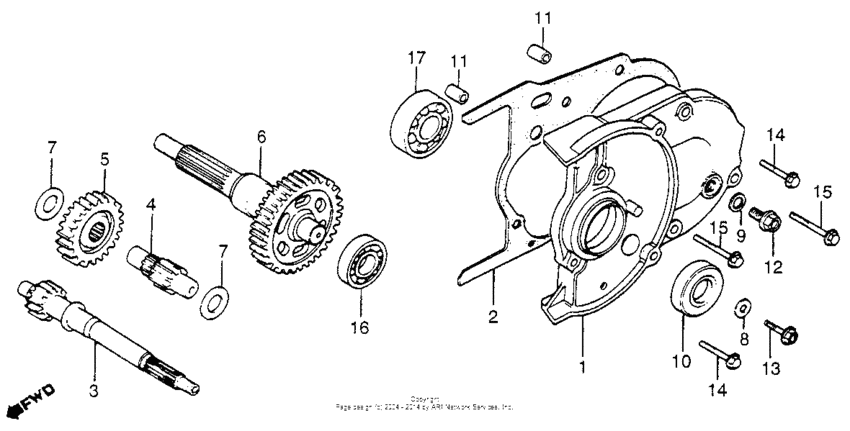

Transmission Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21301-GC7-000
Cover,mission
|
21301-GC7-000 |
— | ||
|
2
|
2
21395-GC8-010
Gasket, trans cvr
|
21395-GC8-010 |
— | ||
|
3
|
3
23411-GC8-010
Shaft,drive
|
23411-GC8-010 |
— | ||
|
4
|
4
23421-GC8-000
Shaft,counter
|
23421-GC8-000 |
— | ||
|
5
|
5
23422-GC8-000
Gear,counter
|
23422-GC8-000 |
— | ||
|
6
|
6
23430-GC8-000
Gear comp.,final
|
23430-GC8-000 |
— | ||
|
7
|
7
90454-350-000 Washer (14mm) |
90454-350-000 |
from US $4.29 |
||
|
8
|
8
90463-KRM-840 Washer (6.2mm) |
90463-KRM-840 |
from US $1.84 |
||
|
9
|
9
90481-001-020 Washer (10.2mm) |
90481-001-020 |
from US $3.11 |
||
|
10
|
10
91202-892-004 Oil seal, 17x30x6 (nok) |
91202-892-004 |
from US $7.18 |
||
|
11
|
11
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
12
|
12
95701-1001200 Bolt, flange (10x12) |
95701-1001200 |
from US $0.74 |
||
|
13
|
13
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
14
|
14
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
15
|
15
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
16
|
16
96100-620-201-0 BearingRADIAL BALL, 6202 |
96100-620-201-0 |
from US $4.88 |
||
|
17
|
17
96100-6203300 Bearing (6203) |
96100-6203300 |
from US $6.07 |
