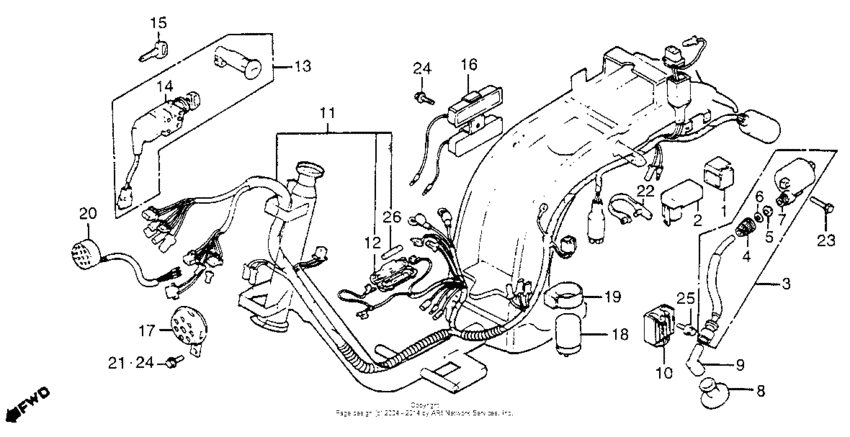

Wire harness Diagram Honda NH80 Aero
- Year
- 1984
- Model code
- NH80MD A
- Sales region
- USA
- Frame
- JH2HF010*ES100002 - JH2HF010*ES113604
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30406-471-000 Suspension |
30406-471-000 |
from US $4.88 |
||
|
2
|
2
30410-187-008
C.d.i. unit
|
30410-187-008 |
— | ||
|
2
|
2
30400-197-000
Cdi unit
|
30400-197-000 |
— | ||
|
3
|
3
30500-VM3-405 Coil assy (cdi)ig |
30500-VM3-405 |
from US $92.85 |
||
|
4
|
4
30501-428-003 Cap, screw |
30501-428-003 |
US $4.74 |
||
|
5
|
5
30502-428-003 Seal, rubber |
30502-428-003 |
US $2.59 |
||
|
6
|
6
30503-428-003 Washer, cap |
30503-428-003 |
US $2.66 |
||
|
7
|
7
30510-167-003
Coil, ignition
|
30510-167-003 |
— | ||
|
8
|
8
30605-GR1-010 Seal,hightension( |
30605-GR1-010 |
US $8.14 |
||
|
9
|
9
30600-GN0-315
Cap set noise sup
|
30600-GN0-315 |
— | ||
|
10
|
10
31600-GC1-701 Rectifier,regulat |
31600-GC1-701 |
from US $92.48 |
||
|
11
|
11
32100-GC8-770
Wire harness
|
32100-GC8-770 |
— | ||
|
12
|
12
32121-196-003 Case,fuse conn. |
32121-196-003 |
US $3.70 |
||
|
13
|
13
35010-GC8-701
Key set
|
35010-GC8-701 |
— | ||
| replacement | |||||
|
13
|
13
35010-GC8-702
Key set
|
35010-GC8-702 |
— | ||
|
13
|
13
35010-GC8-702
Key set
|
35010-GC8-702 |
— | ||
|
14
|
14
35100-GC8-701
Switch assy.,comb
|
35100-GC8-701 |
— | ||
|
15
|
15
35121-MR1-770 Key, blank (type1)(Optional). |
35121-MR1-770 |
from US $10.21 |
||
|
15
|
15
35122-MR1-770 Key, blank (type2)(Optional). |
35122-MR1-770 |
from US $10.21 |
||
|
16
|
16
35400-KY0-970
Resistor assy.
|
35400-KY0-970 |
— | ||
|
17
|
17
38110-GA7-702 Horn |
38110-GA7-702 |
US $31.14 |
||
| replacement | |||||
|
17
|
17
38110-GA7-703 HORN COMPHIGH |
38110-GA7-703 |
US $31.14 |
||
|
18
|
18
38301-MG2-008 Relay, turn signal |
38301-MG2-008 |
from US $44.10 |
||
|
19
|
19
38306-KJ6-740 Suspension |
38306-KJ6-740 |
from US $4.29 |
||
|
20
|
20
38401-GC8-004 Buzzer,electron |
38401-GC8-004 |
US $38.62 |
||
|
22
|
22
90668-GA7-003
Strap c,cable
|
90668-GA7-003 |
— | ||
|
23
|
23
92101-05016-0A Bolt, hex., 5x16 |
92101-05016-0A |
from US $0.37 |
||
|
24
|
24
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
25
|
25
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
26
|
26
9820010700 Fuse a (7a) |
9820010700 |
from US $0.59 |
||
