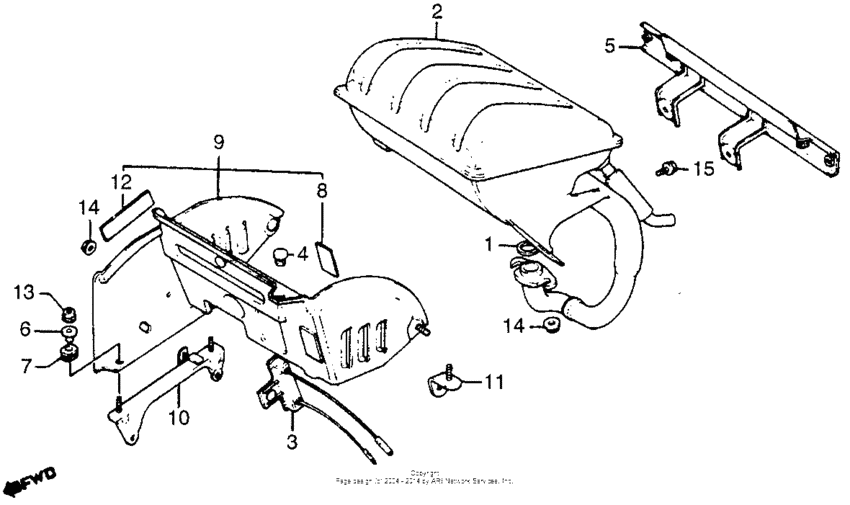

Muffler Diagram Honda NN50
- Year
- 1984
- Model code
- NN50MD A
- Sales region
- USA
- Frame
- JH2TB090*ES000003 - JH2TB090*ES005212
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18292-GY1-610 Gasket,exh pipe |
18292-GY1-610 |
from US $6.36 |
||
|
2
|
2
18300-GK0-671
Muffler comp.,ex.
|
18300-GK0-671 |
— | ||
|
3
|
3
35401-GK0-000
Resistor comp
|
35401-GK0-000 |
— | ||
|
4
|
4
47117-196-000 Rubber, stopper |
47117-196-000 |
from US $2.15 |
||
|
5
|
5
80115-GK0-000
Stay, rr.
|
80115-GK0-000 |
— | ||
|
6
|
6
80121-GJ5-000 Collar |
80121-GJ5-000 |
US $4.88 |
||
|
7
|
7
80122-GJ5-000
Rub, separator mount
|
80122-GJ5-000 |
— | ||
|
8
|
8
80123-GJ5-000
Rubber b, protector
|
80123-GJ5-000 |
— | ||
|
9
|
9
80124-GK0-000
Separator assy
|
80124-GK0-000 |
— | ||
|
10
|
10
80125-GJ5-000
Stay a, separator
|
80125-GJ5-000 |
— | ||
|
11
|
11
80126-GJ5-000
Stay b, separator
|
80126-GJ5-000 |
— | ||
|
12
|
12
80127-GK0-000
Rubber, spacer
|
80127-GK0-000 |
— | ||
|
13
|
13
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.29 |
||
|
14
|
14
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
15
|
15
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
