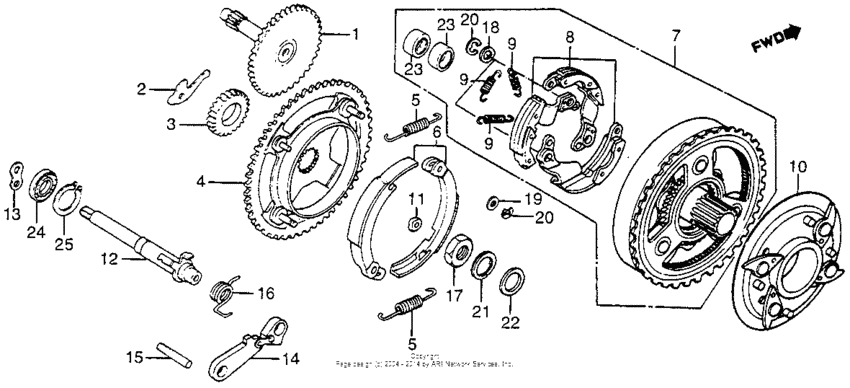

Oil pump driveshaft + clutch + parking shaft Diagram Honda NN50
- Year
- 1984
- Model code
- NN50MD A
- Sales region
- USA
- Frame
- JH2TB090*ES000003 - JH2TB090*ES005212
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15110-GJ5-003
Shaft
|
15110-GJ5-003 |
— | ||
|
2
|
2
15116-GJ5-000
Plate
|
15116-GJ5-000 |
— | ||
|
3
|
3
15131-GJ5-000
Gear
|
15131-GJ5-000 |
— | ||
|
4
|
4
22350-GK0-000
Plate, drive
|
22350-GK0-000 |
— | ||
|
5
|
5
22401-GK0-000
Spring, low clutch
|
22401-GK0-000 |
— | ||
|
6
|
6
22535-GJ5-P00
Weight set,low cl
|
22535-GJ5-P00 |
— | ||
|
7
|
7
22600-GK0-406
Clutch assy,2nd
|
22600-GK0-406 |
— | ||
|
8
|
8
22620-GK0-405
Weight set,2nd cl
|
22620-GK0-405 |
— | ||
|
9
|
9
22623-GK0-670
Spring
|
22623-GK0-670 |
— | ||
|
10
|
10
22650-GK0-000
Plate, sun gear
|
22650-GK0-000 |
— | ||
|
11
|
11
22804-GJ5-010
Rub, clutch damper
|
22804-GJ5-010 |
— | ||
|
12
|
12
24510-GJ5-000
Shaft, parking
|
24510-GJ5-000 |
— | ||
|
13
|
13
24513-GJ5-000
Lever, parking
|
24513-GJ5-000 |
— | ||
|
14
|
14
24520-GJ5-000
Arm assy., parking
|
24520-GJ5-000 |
— | ||
|
15
|
15
24531-GJ5-000
Pin, parking
|
24531-GJ5-000 |
— | ||
|
16
|
16
24552-GJ5-000
Spring, parking arm
|
24552-GJ5-000 |
— | ||
|
17
|
17
90201-GJ5-000
Nut, special (17mm)
|
90201-GJ5-000 |
— | ||
|
18
|
18
90442-GB2-000 Washer, thrust, 6mm |
90442-GB2-000 |
US $5.27 |
||
|
19
|
19
90442-044-000 Washer, thrust (6mm) |
90442-044-000 |
from US $2.66 |
||
|
20
|
20
90454-GB2-000 Circlip6MM |
90454-GB2-000 |
from US $1.10 |
||
|
21
|
21
90455-GJ5-003
Circlip (12mm)
|
90455-GJ5-003 |
— | ||
|
22
|
22
90461-GJ5-000 Washer, thrust, 12mm |
90461-GJ5-000 |
from US $2.22 |
||
|
23
|
23
91024-GJ5-003 Bearing (12x16x10) |
91024-GJ5-003 |
from US $5.92 |
||
|
24
|
24
91201-VA4-801 Oil seal, 10x20x5 |
91201-VA4-801 |
US $6.43 |
||
|
25
|
25
94510-12000 CirclipEXTERNAL, 12MM |
94510-12000 |
from US $0.44 |
