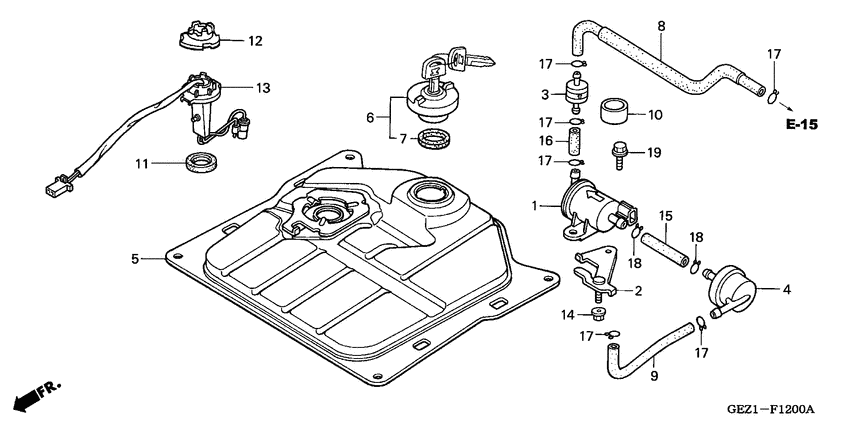

Fuel tank (NPS503) Diagram Honda NPS50 Ruckus
- Year
- 2003
- Model code
- NPS503
- Sales region
- Canada
- Frame
- JH2AF582*3K000001 - JH2AF582*3K099999
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16710-GET-003
Pump Assy., Fuel
|
16710-GET-003 |
— | ||
| replacement | |||||
|
1
|
1
16710-GET-013 Pump Assy., Fuel |
16710-GET-013 |
from US $106.76 |
||
|
2
|
2
16715-GET-000 Stay, fuel pump |
16715-GET-000 |
from US $8.58 |
||
|
3
|
3
16800-GBL-J21 Valve, check |
16800-GBL-J21 |
from US $17.24 |
||
| replacement | |||||
|
3
|
3
16800-GET-831 Valve, check |
16800-GET-831 |
from US $16.59 |
||
|
4
|
4
16900-GET-003 Strainer, fuel |
16900-GET-003 |
from US $16.73 |
||
|
5
|
5
17500-GET-000 Tank, fuel |
17500-GET-000 |
from US $159.22 |
||
| replacement | |||||
|
5
|
5
17500-GET-010 Tank, fuel |
17500-GET-010 |
from US $175.44 |
||
|
6
|
6
17620-GET-007 Cap, fuel filler |
17620-GET-007 |
from US $50.18 |
||
| replacement | |||||
|
6
|
6
17620-GEZ-711
Cap, fuel filler
|
17620-GEZ-711 |
— | ||
|
7
|
7
17632-383-831
Gasket
|
17632-383-831 |
— | ||
| replacement | |||||
|
7
|
7
17632-383-832 GASKET |
17632-383-832 |
from US $5.33 |
||
|
8
|
8
17682-GEZ-000 Tube, fuel (4.5x480) |
17682-GEZ-000 |
from US $8.29 |
||
|
9
|
9
17683-GET-000 Tube a, fuel |
17683-GET-000 |
US $3.83 |
||
| replacement | |||||
|
9
|
9
17683-GET-010 Tube a, fuel |
17683-GET-010 |
from US $4.29 |
||
|
10
|
10
17684-GBL-J20 Tube (19x23x20) |
17684-GBL-J20 |
from US $0.65 |
||
|
11
|
11
37801-GA7-700 Packing, base |
37801-GA7-700 |
from US $4.07 |
||
|
12
|
12
37802-GA7-700 Retainer, fuel unit |
37802-GA7-700 |
from US $5.03 |
||
|
13
|
13
37820-GFB-003
Sensor, fuel reserve
|
37820-GFB-003 |
— | ||
|
14
|
14
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
15
|
15
95001-550-554-0
Tube, fuel, 5.3x55 (95001-55001-60m)
|
95001-550-554-0 |
— | ||
|
16
|
16
95001-450-454-0 Tube, fuel, 4.5x45 (95001-45001-60m) |
95001-450-454-0 |
US $0.74 |
||
|
17
|
17
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
18
|
18
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
19
|
19
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
