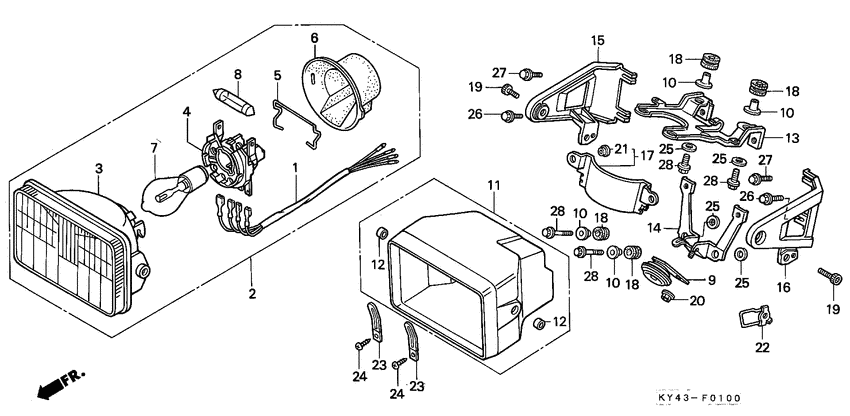

Headlight (1) Diagram Honda NSR125
- Year
- 1988
- Model code
- NSR125FJ
- Sales region
- Portugal
- Frame
- HIJC20000001 - HIJC20099999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32102-KR1-762
Sub cord h/l
|
32102-KR1-762 |
— | ||
|
2
|
2
33100-KR1-764
Light assy.,head
|
33100-KR1-764 |
— | ||
|
3
|
3
33120-KR1-763
Headlight unit
|
33120-KR1-763 |
— | ||
|
4
|
4
33130-KR1-762
Holder h/l socket
|
33130-KR1-762 |
— | ||
|
5
|
5
33131-KR1-762
Stpr.,spg.
|
33131-KR1-762 |
— | ||
|
6
|
6
33180-KR1-762 Cover rubber |
33180-KR1-762 |
US $14.92 |
||
|
7
|
7
34901-388-611 Bulb,headlight |
34901-388-611 |
from US $27.28 |
||
|
8
|
8
34903-KR1-760
Bulb position
|
34903-KR1-760 |
— | ||
|
9
|
9
38110-KY4-900 Horn comp.(low) |
38110-KY4-900 |
US $54.91 |
||
|
10
|
10
61104-422-000 Collar, setting |
61104-422-000 |
from US $5.18 |
||
|
11
|
11
61301-KY4-900
Case,head light
|
61301-KY4-900 |
— | ||
|
12
|
12
61302-229-300 Collar,light.case |
61302-229-300 |
US $2.66 |
||
|
13
|
13
61310-KY4-900
Stay a,h/l
|
61310-KY4-900 |
— | ||
|
14
|
14
61315-KY4-900
Stay b,headlight
|
61315-KY4-900 |
— | ||
|
15
|
15
61320-KY4-900ZA
Bracket,r*yr139m*
|
61320-KY4-900ZA |
— | ||
|
16
|
16
61321-KY4-900ZA
Bracket,l*yr139m*
|
61321-KY4-900ZA |
— | ||
|
17
|
17
61325-KY4-900
Guard,harness inn
|
61325-KY4-900 |
— | ||
|
18
|
18
64615-KR1-860 Rub, cowl mounting |
64615-KR1-860 |
from US $2.96 |
||
|
19
|
19
90116-KY4-900
Bolt,socket,8x16
|
90116-KY4-900 |
— | ||
|
20
|
20
90303-KL8-710 Nut,flange,8mm |
90303-KL8-710 |
US $2.09 |
||
|
21
|
21
90506-425-000 Washer, rr. cover |
90506-425-000 |
from US $2.89 |
||
|
22
|
22
90666-KY4-900
Guide a,cable
|
90666-KY4-900 |
— | ||
|
23
|
23
90670-KY4-900
Clip,70mm
|
90670-KY4-900 |
— | ||
|
24
|
24
93903-24280 ScrewTAPPING, 4X10 |
93903-24280 |
from US $0.37 |
||
|
25
|
25
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
|
26
|
26
95701-060-160-7 BoltFLANGE, 6X16 |
95701-060-160-7 |
from US $0.58 |
||
|
27
|
27
95701-060-200-7 BoltFLANGE, 6X20 |
95701-060-200-7 |
from US $0.58 |
||
|
28
|
28
95701-0602807 Bolt, flange (6x28) |
95701-0602807 |
from US $0.59 |
