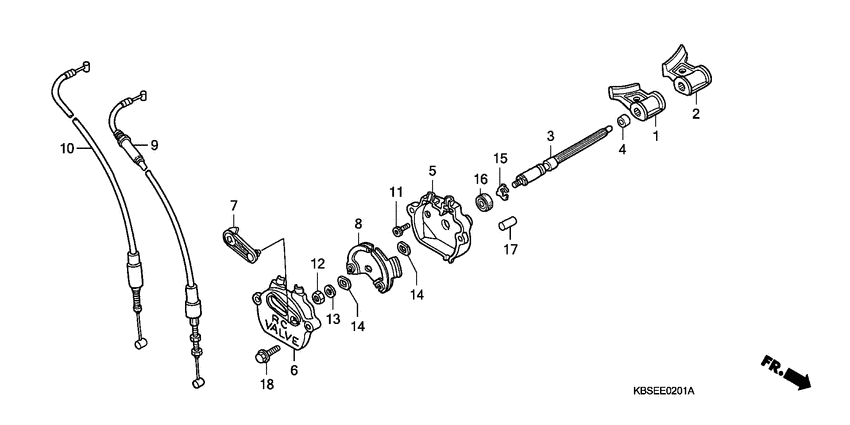

Exhaust valve (2) Diagram Honda NSR125
- Year
- 2001
- Model code
- NSR125R1
- Sales region
- France
- Frame
- ZDCJC22B01F240001 - ZDCJC22B01F999999
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14201-KAK-900
Valve,r.flap
|
14201-KAK-900 |
— | ||
|
2
|
2
14202-KAK-900
Valve
|
14202-KAK-900 |
— | ||
|
3
|
3
14211-KAK-901
Shaft,flap valve.
|
14211-KAK-901 |
— | ||
|
4
|
4
14231-KV3-000 Collar (6.6) |
14231-KV3-000 |
from US $3.04 |
||
|
5
|
5
14301-KBS-620
Base,cable guide
|
14301-KBS-620 |
— | ||
|
6
|
6
14302-KBS-620
Cover comp.,cable
|
14302-KBS-620 |
— | ||
|
7
|
7
14303-KY4-900
Cap,check window
|
14303-KY4-900 |
— | ||
|
8
|
8
14320-KAK-900
Plate comp.,cable
|
14320-KAK-900 |
— | ||
|
9
|
9
14330-KBS-620
Cable comp a,valv
|
14330-KBS-620 |
— | ||
|
10
|
10
14340-KBS-620
Cable comp b,valv
|
14340-KBS-620 |
— | ||
|
11
|
11
90036-KY4-900 Bolt, socket (6x16) |
90036-KY4-900 |
from US $1.93 |
||
|
12
|
12
90310-634-980 Nut,control rod |
90310-634-980 |
US $1.47 |
||
|
13
|
13
90437-GM0-000 Washer (6x12.5x2) |
90437-GM0-000 |
from US $1.70 |
||
|
14
|
14
90555-KV3-000 Washer,valve shaf |
90555-KV3-000 |
from US $3.40 |
||
|
15
|
15
90601-KV3-000 E ring,special,7m |
90601-KV3-000 |
US $2.41 |
||
|
16
|
16
91201-PA9-004 Oil seal9X18X7 (ARAI) |
91201-PA9-004 |
from US $3.33 |
||
|
17
|
17
94303-05080 Dowel pin5X8 |
94303-05080 |
from US $0.81 |
||
|
18
|
18
96001-0601607 Bolt, flange, 6x16 |
96001-0601607 |
from US $0.59 |
