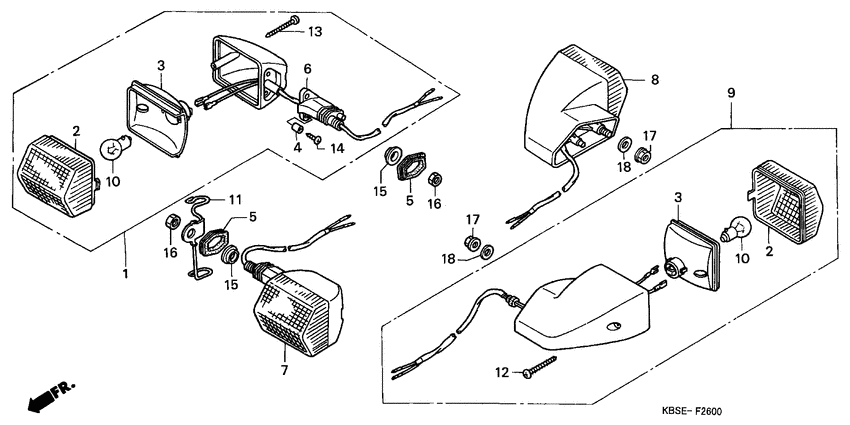

Winker (1) Diagram Honda NSR125
- Year
- 2001
- Model code
- NSR125R1
- Sales region
- Switzerland
- Frame
- ZDCJC22E01F240001 - ZDCJC22E01F999999
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-KAY-600
Winker assy.,r.fr
|
33400-KAY-600 |
— | ||
|
2
|
2
33402-KY4-900 Lens winker |
33402-KY4-900 |
US $15.63 |
||
|
3
|
3
33403-KY4-900 Reflector |
33403-KY4-900 |
US $19.16 |
||
|
4
|
4
33411-GJ3-601 Coller 4.5mm |
33411-GJ3-601 |
US $3.40 |
||
|
5
|
5
33415-KBS-740
Gromet,fr winker
|
33415-KBS-740 |
— | ||
|
6
|
6
33441-KR1-761
Stay,winker
|
33441-KR1-761 |
— | ||
|
7
|
7
33450-KBS-740
Winker assy,l fr.
|
33450-KBS-740 |
— | ||
|
8
|
8
33600-KBS-900
Winker assy.,r.rr
|
33600-KBS-900 |
— | ||
|
9
|
9
33650-KBS-900
Winker assy.,l.rr
|
33650-KBS-900 |
— | ||
|
10
|
10
34907-415-751 Bulb (12v10w) |
34907-415-751 |
US $2.29 |
||
|
11
|
11
44838-KBS-740
Clamper,speed met
|
44838-KBS-740 |
— | ||
|
12
|
12
90102-KY4-900
Screw,tapping,4x5
|
90102-KY4-900 |
— | ||
|
13
|
13
90104-KY4-900 Screw tapping 4x4 |
90104-KY4-900 |
US $3.56 |
||
|
14
|
14
90156-GJ3-600 Screw,tapping 4x1 |
90156-GJ3-600 |
US $2.31 |
||
|
15
|
15
90505-KBS-740
Collar,fr winker
|
90505-KBS-740 |
— | ||
|
16
|
16
94001-120-700-S Nut,hex 12mm |
94001-120-700-S |
US $0.59 |
||
|
17
|
17
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
18
|
18
9410308000 Washer, plain, 8mm |
9410308000 |
from US $0.44 |
