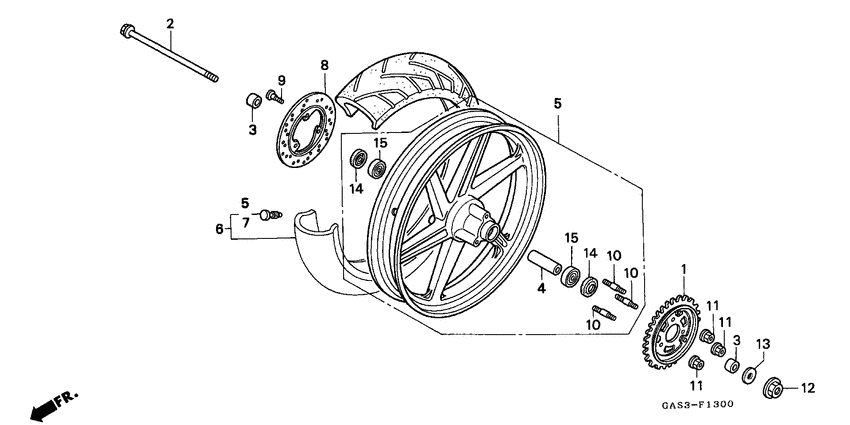

Rear wheel Diagram Honda NSR75
- Year
- 1999
- Model code
- NSR75X
- Sales region
- Spain
- Engine Capacity
- 75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41200-GT5-000
Sprkt comp,final
|
41200-GT5-000 |
— | ||
|
2
|
2
42301-GAA-000 Axle,rr.wheel |
42301-GAA-000 |
US $18.32 |
||
|
3
|
3
42311-GS9-000 Colr, rr. wheel side |
42311-GS9-000 |
from US $6.96 |
||
|
4
|
4
42620-GAS-900 Collar, rr. wheel di |
42620-GAS-900 |
from US $7.84 |
||
|
5
|
5
42650-GAS-305ZD
Wheel set,*yr181*
|
42650-GAS-305ZD |
— | ||
|
6
|
6
42710-GAS-305
Tire assy,rear
|
42710-GAS-305 |
— | ||
|
7
|
7
42753-ML7-004 Valve, rim |
42753-ML7-004 |
from US $5.36 |
||
|
8
|
8
43351-GAS-900
Disk,rr brake
|
43351-GAS-900 |
— | ||
|
9
|
9
90105-MV9-003 Bolt, disk (8x24) |
90105-MV9-003 |
from US $3.85 |
||
|
10
|
10
90125-GE2-740 Bolt, stud (10x31) |
90125-GE2-740 |
from US $3.26 |
||
|
11
|
11
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $3.33 |
||
|
12
|
12
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.26 |
||
|
13
|
13
90504-GE3-760 Washer, rr. axle |
90504-GE3-760 |
from US $3.26 |
||
|
14
|
14
90753-051-003 Oil seal (26x37x6) |
90753-051-003 |
from US $6.07 |
||
|
14
|
14
90753-051-005 Oil seal (26x37x6) |
90753-051-005 |
US $7.31 |
||
| replacement | |||||
|
14
|
14
90753-051-003 Oil seal (26x37x6) |
90753-051-003 |
from US $6.07 |
||
|
15
|
15
96150-6301010 Bearing (6301uu) |
96150-6301010 |
from US $8.88 |
||
