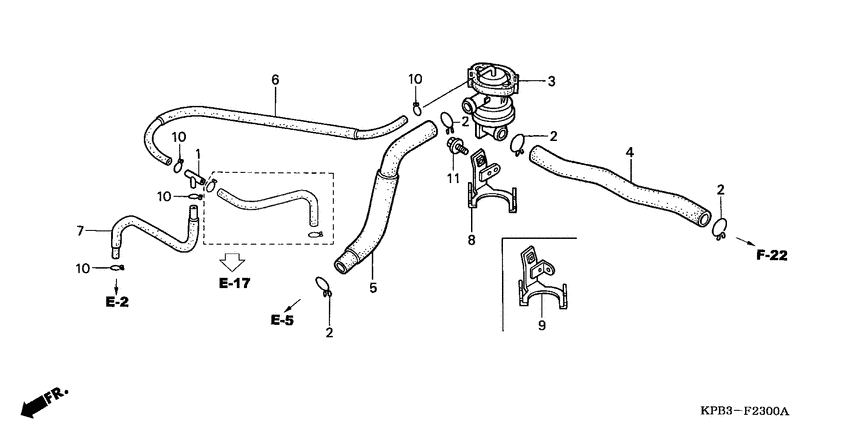

Air injection valve Diagram Honda NSS250 Jazz
- Year
- 2002
- Model code
- NSS2502
- Sales region
- Korea
- Frame
- JH2MF069*2K100001 - JH2MF069*2K199999
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17201-MG9-000 Joint a, vacuum tube |
17201-MG9-000 |
from US $12.28 |
||
|
2
|
2
17724-102-700 ClipSUB TANK HOSE |
17724-102-700 |
from US $2.44 |
||
|
3
|
3
18650-KFG-J01 Valve assy. |
18650-KFG-J01 |
US $87.60 |
||
| replacement | |||||
|
3
|
3
18650-KFG-J02 Valve assy. |
18650-KFG-J02 |
US $87.60 |
||
|
4
|
4
18651-KFG-J00 Tube a, air in. |
18651-KFG-J00 |
US $16.98 |
||
|
5
|
5
18652-KFG-J00 Tube b, air in. |
18652-KFG-J00 |
US $19.70 |
||
|
6
|
6
18653-KFG-J00 Tube (3.5x500) |
18653-KFG-J00 |
US $5.53 |
||
|
7
|
7
18654-KFG-J00 Tube (3.5x130) |
18654-KFG-J00 |
US $3.45 |
||
|
8
|
8
18660-KPB-000 Stay |
18660-KPB-000 |
US $7.11 |
||
|
10
|
10
9500202079 Clip, tube (b7) |
9500202079 |
from US $0.47 |
||
|
11
|
11
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
