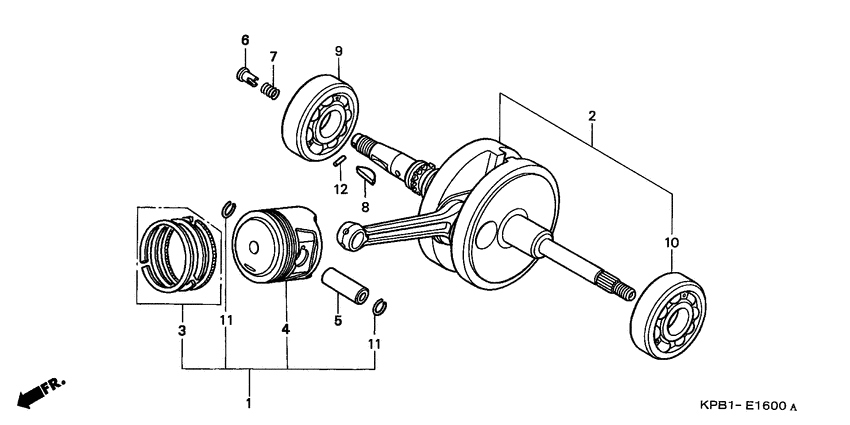

Crankshaft/piston (NSS2502) Diagram Honda NSS250 Jazz
- Year
- 2002
- Model code
- NSS2502
- Sales region
- Korea
- Frame
- JH2MF069*2K100001 - JH2MF069*2K199999
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06131-KFG-000
Piston kit (std)
|
06131-KFG-000 |
— | ||
|
2
|
2
13000-KFG-J02 Crankshaft |
13000-KFG-J02 |
from US $431.83 |
||
| replacement | |||||
|
2
|
2
13000-KFG-J03 Crankshaft |
13000-KFG-J03 |
from US $603.52 |
||
|
3
|
3
13010-KFG-000
Ring set (std)
|
13010-KFG-000 |
— | ||
|
4
|
4
13101-KFG-000 Piston (std) |
13101-KFG-000 |
from US $56.63 |
||
|
5
|
5
13111-KFG-000
Pin, piston
|
13111-KFG-000 |
— | ||
|
6
|
6
15441-149-000 Through, oil |
15441-149-000 |
from US $5.77 |
||
|
7
|
7
15447-149-000 Spring, oil through |
15447-149-000 |
from US $2.72 |
||
|
8
|
8
90741-KS4-020 Key, woodruff (4mm) |
90741-KS4-020 |
from US $2.96 |
||
|
9
|
9
91001-KFG-J01 Bearing (35x72x17) |
91001-KFG-J01 |
from US $25.70 |
||
|
10
|
10
91001-KFG-013 Bearing (28x72x18) |
91001-KFG-013 |
US $46.50 |
||
|
11
|
11
94601-17000 ClipPISTON PIN, 17MM |
94601-17000 |
from US $0.44 |
||
|
12
|
12
9622020138 Roller, 2x13.8 |
9622020138 |
from US $0.22 |
||
